Ricoh A-C4 - Scanner Exterior Panels, Operation Panel

20 June 2005 SCANNER UNIT
3-11
Replacement
Adjustment

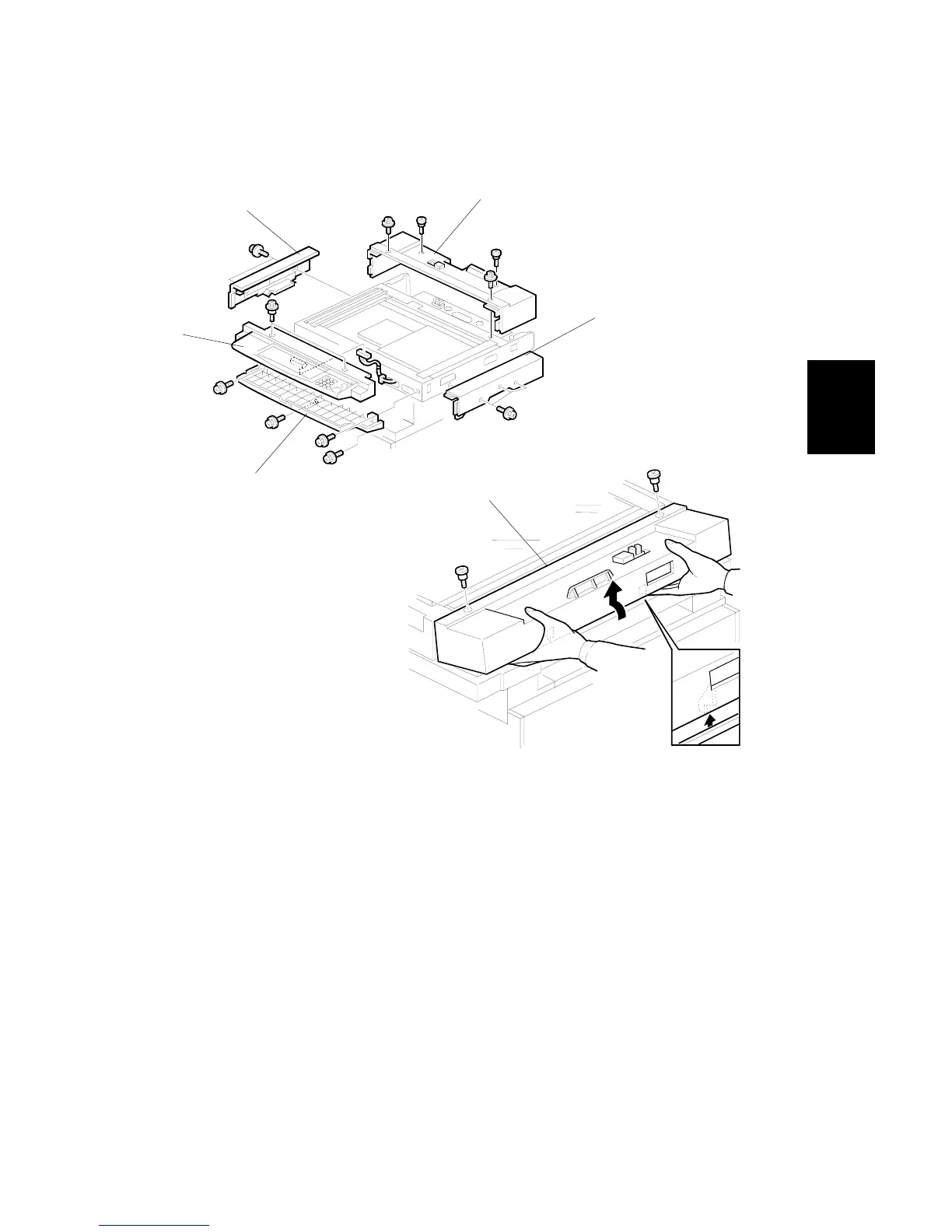

3.9.3 SCANNER EXTERIOR PANELS, OPERATION PANEL
1. ARDF ( 3.9.1)
2. Exposure glass and DF exposure glass (3.9.2)
3. Operation panel [A] ( x2,  x1)
4. Operation panel base [B] ( x4)
5. Scanner rear cover [C] ( x4). Carefully lift in the direction of the arrow to
disconnect the tab.
6. Right cover [D] ( x3 )
7. Left cover [E] ( x2)
B195R908.WMF
B195R909.WMF
[A]
[B]
[C]
[D]
[E]
[C]
