Pre-installation
Remove Short Scanner Cable

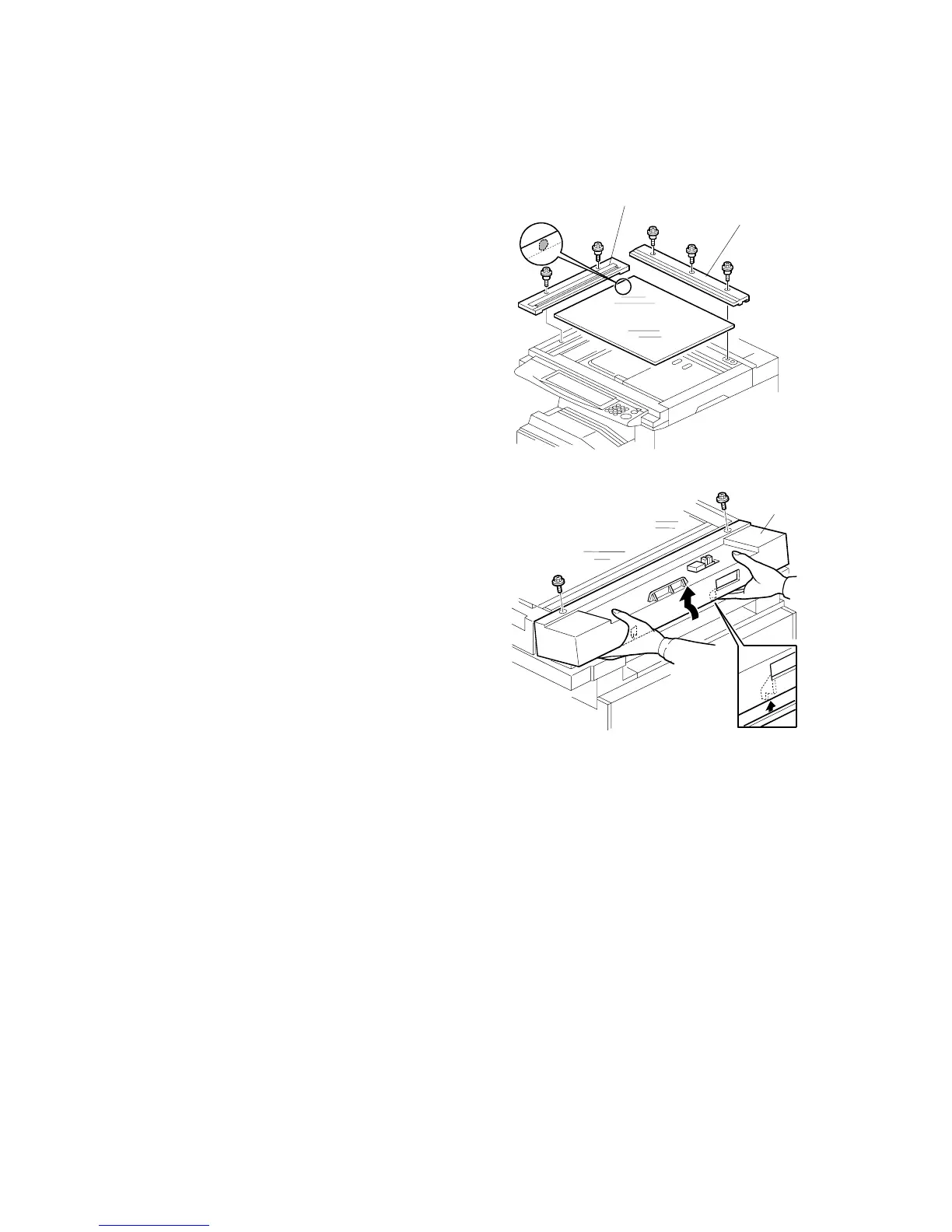

1. If the ARDF is attached, remove it.
2. Remove:
[A]: Rear scale ( x3)
[B]: Left scale and exposure glass ( x2)
3. Remove scanner rear cover [C] ( x2).
B815I101.WMF
B815I103.WMF
[A]
[B]
[C]
