1.12 BOOKLET FINISHER INSTALLATION (B546)
1.12.1 ACCESSORY CHECK
Check the quantity and condition of the accessories in the box against the following
list.
Description Q’ty
1. Upper Tray...........................................................................1
2. Shift Tray .............................................................................1
3. Tapping Screw - M4 x 6.......................................................2
4. Rail Ass’y.............................................................................1
5. Joint Bracket........................................................................1
6. Tapping Screw - M4 x 16.....................................................8
7. Rail Bracket .........................................................................1
8. Tapping Screw - M4 x 6.......................................................1
9. Harness Cover.....................................................................1
10. Sensor Feeler ....................................................................1

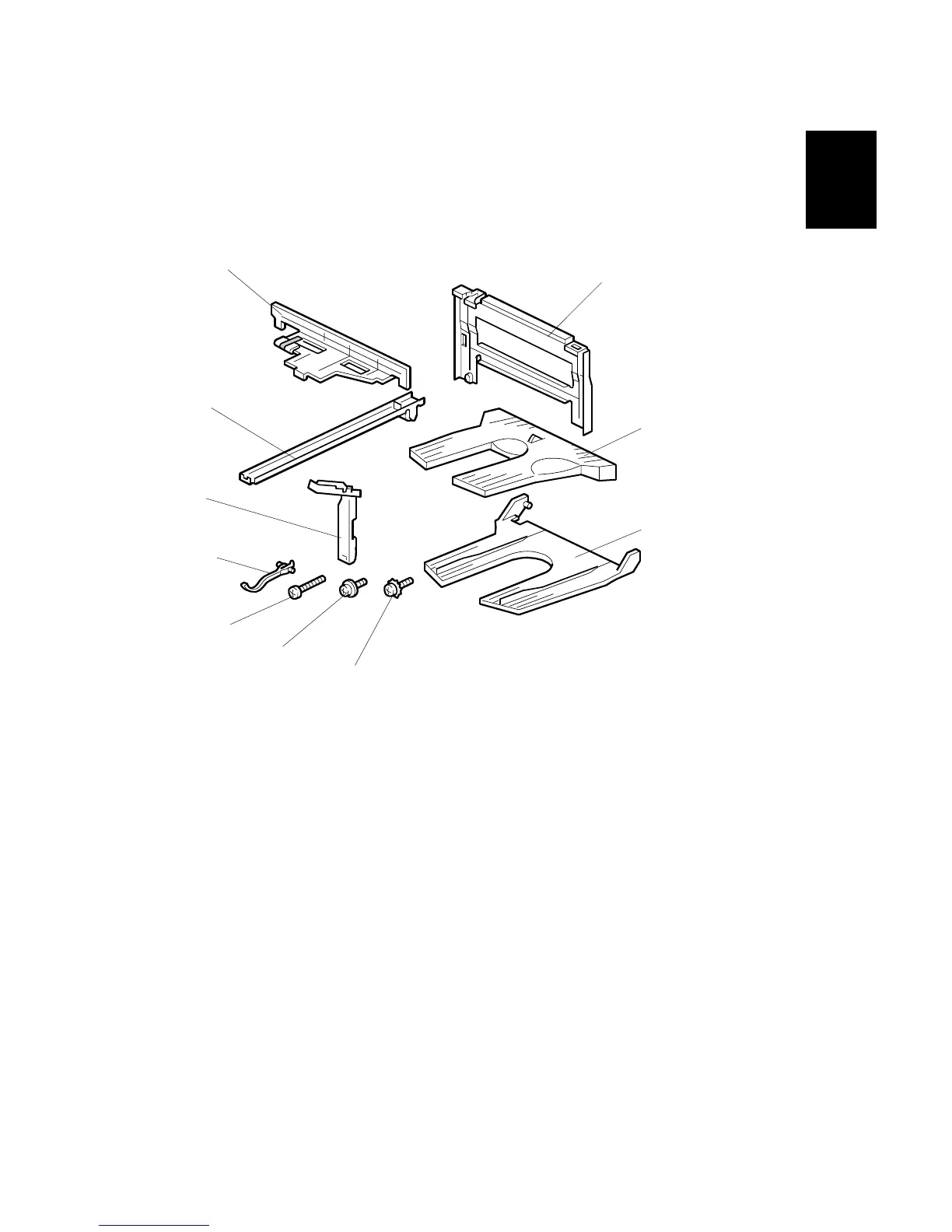

B546I101.WMF
