Ricoh A-C4 - By-Pass Tray; Cover Replacement

BY-PASS TRAY 20 June 2005
3-70
3.16 BY-PASS TRAY
3.16.1 COVER REPLACEMENT
1. Rear cover [A] ( x1)
2. Front cover [B] ( x1)
3. Hinge cover [C] ( x1)
4. Upper cover [D] ( x2)
5. Close the duplex unit and pull out the upper cover.

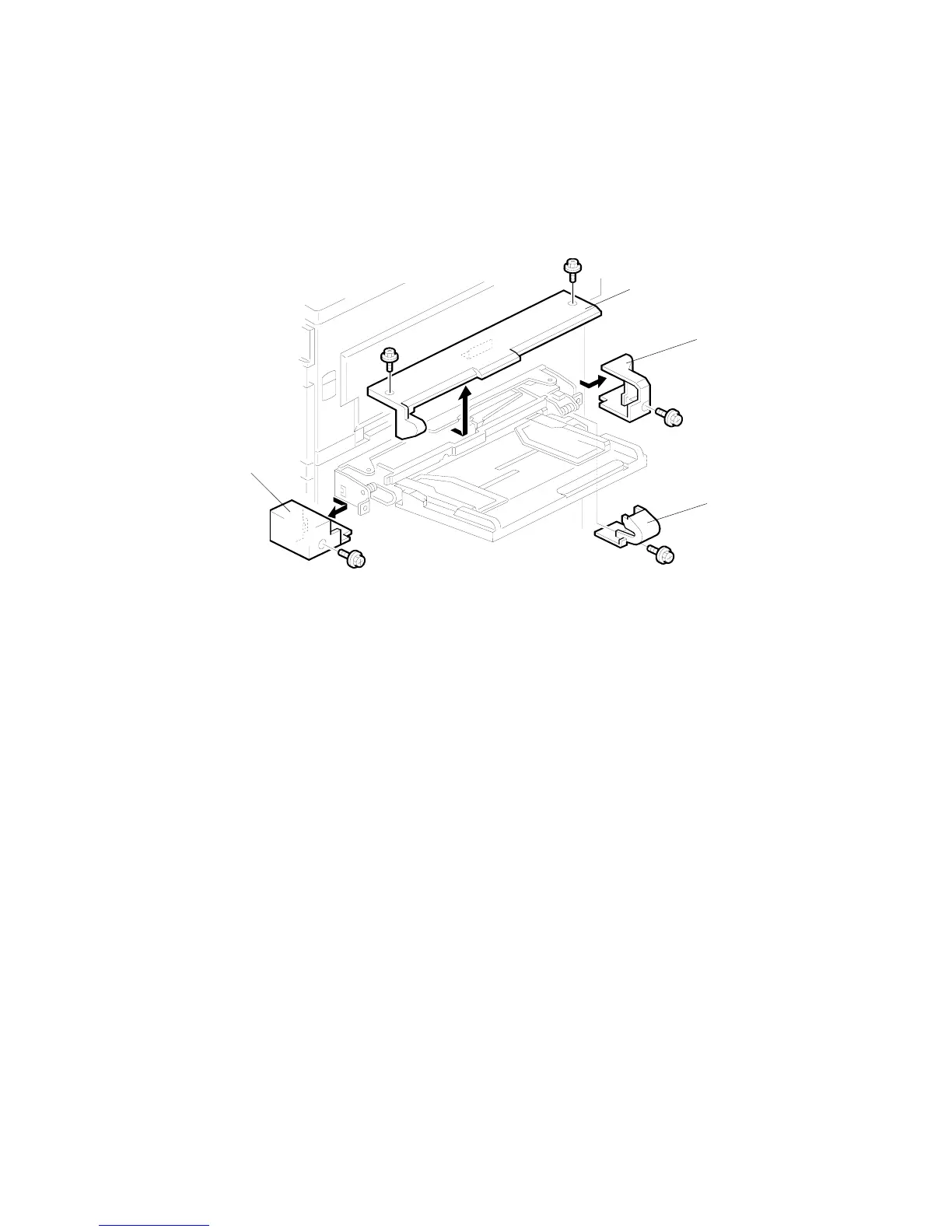

B195R976.WMF
[B]
[D]
[A]
[C]
