FUSING UNIT 20 June 2005
3-64

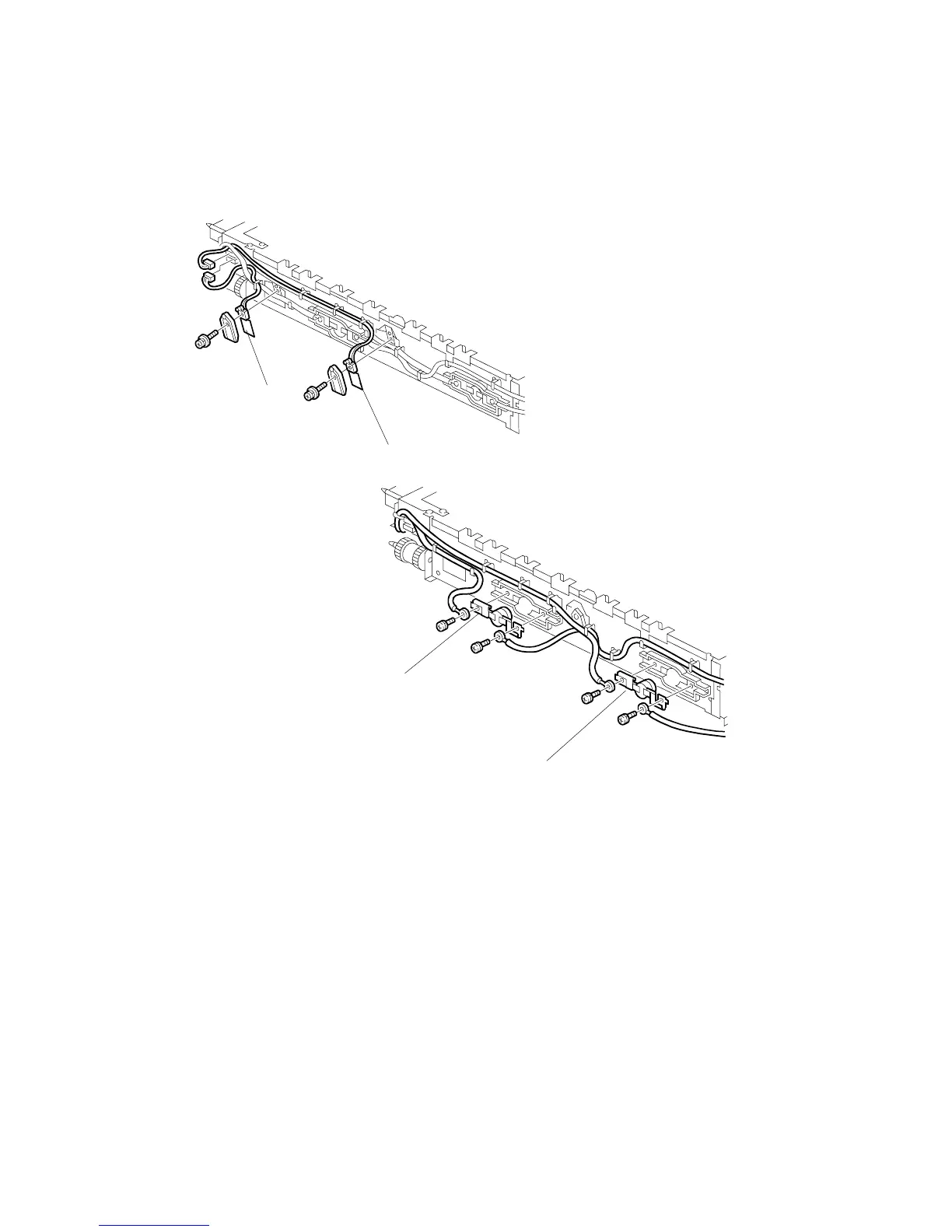

3.15.5 THERMISTORS AND THERMOSTATS
1. Fusing unit (3.15)
2. Fusing upper and lower cover. (3.15.3)
3. Center thermistor [A] ( x1, x1, holder x1)
4. End thermistor [B] ( x1, x1, holder x1)
CAUTION: The thermistors are thinly coated and extremely fragile. Handle with
care to avoid damaging them. They should be replaced every 150K.
5. Center thermostat [C] ( x2)
6. End thermostat [D] ( x2)
B195R995.WMF
B195R996.WMF
[A]
[B]
[C]
[D]
