20 June 2005 INSTALLATION REQUIREMENTS
1-3
Installation
1.1.3 MINIMUM SPACE REQUIREMENTS

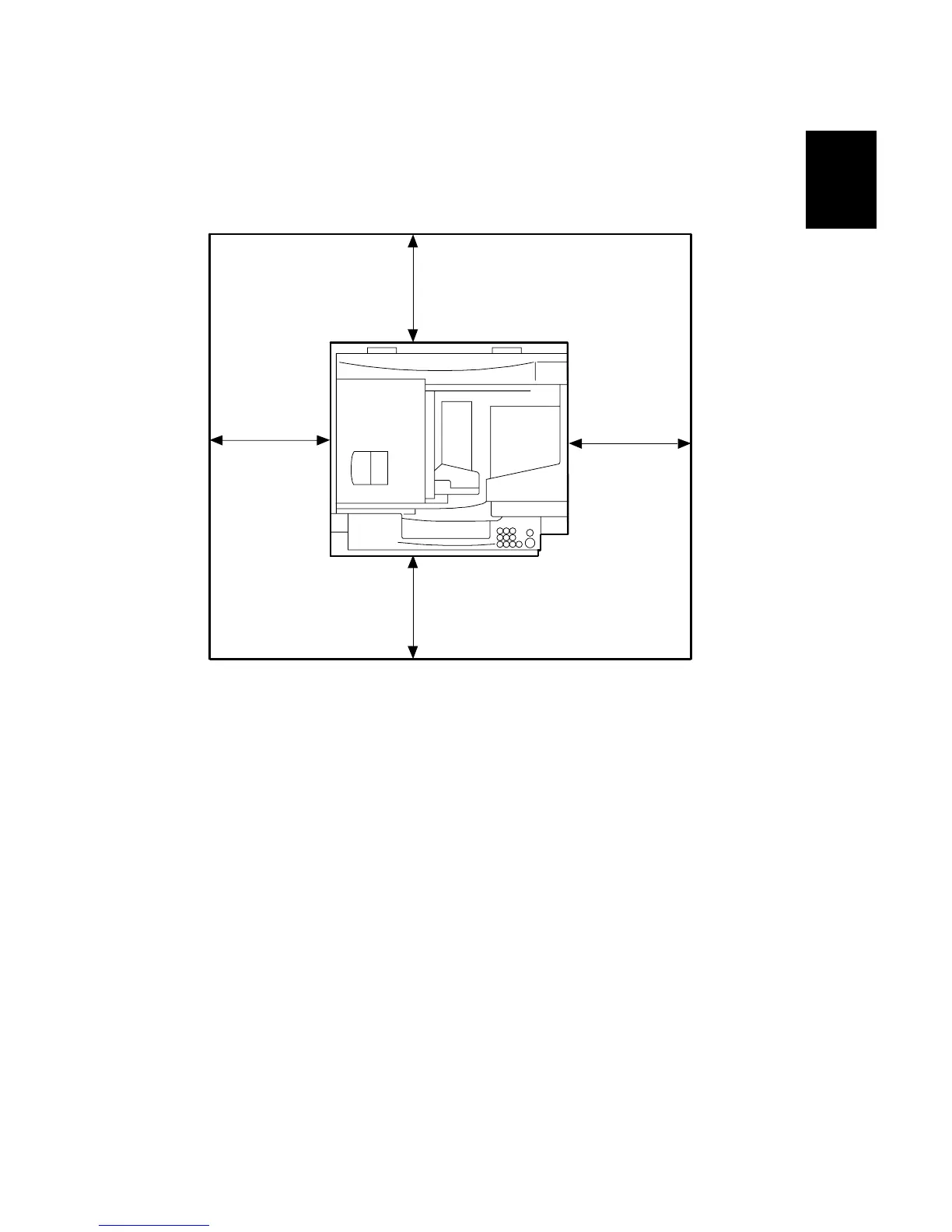

Place the main machine near the power source, providing clearance as shown:
NOTE: The 75 cm (29.5") recommended for the space at the front is for pulling out
the paper tray only. If the operator stands at the front of the main machine,
more space is required.
B135I010.WMF
A: Front: >75 cm (29.6")
B: Left: > 10 cm (4")
C: Rear: > 10 cm (4")
D: Right > 10 cm (4")
B
C
D
A
