20 June 2005 DEVELOPMENT
3-41
Replacement
Adjustment
3.12.4 DEVELOPER
1. Development unit ( 3.12.1)
2. Remove the development roller ( 3.12.3)

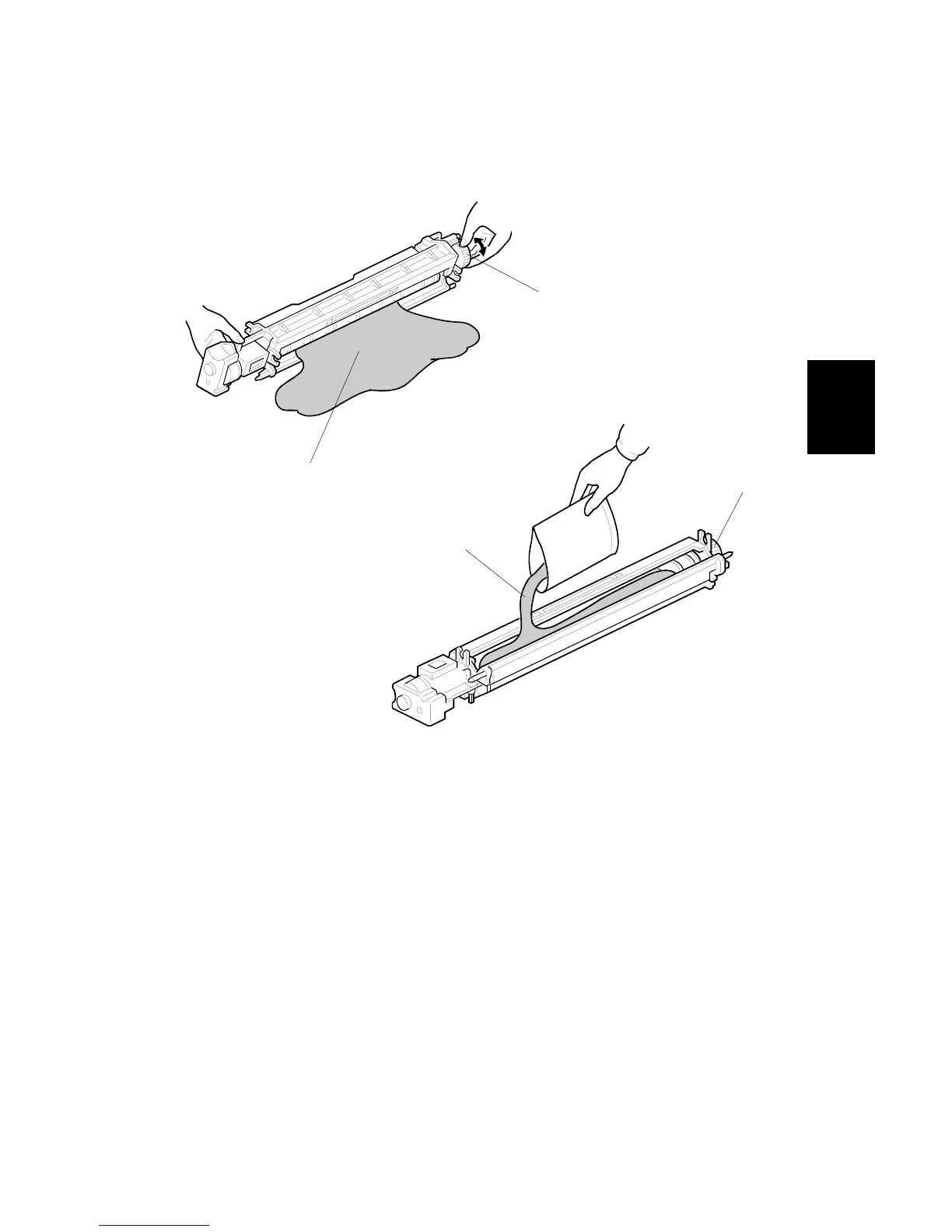

3. Tip out the old developer [A].
4. Turn drive gear [B] to ensure that no developer remains in the unit or on the
developer roller.
NOTE: Dispose of the used developer in accordance with local regulations.
Work carefully to avoid scratching or nicking the development roller.
5. Pour approximately 1/3 of the developer [C] evenly along the length of the
development unit.
6. Rotate the drive gear [D] to work the developer into the unit. Repeat [C] and [D]
until all toner is in the unit and level with the edges.
