Ricoh A-C4 - Bridge Unit Installation Procedure

20 June 2005 BRIDGE UNIT INSTALLATION (B538)
1-33
Installation
1.6.2 BRIDGE UNIT INSTALLATION PROCEDURE
CAUTION
Unplug the main machine power cord before starting the following
procedure.

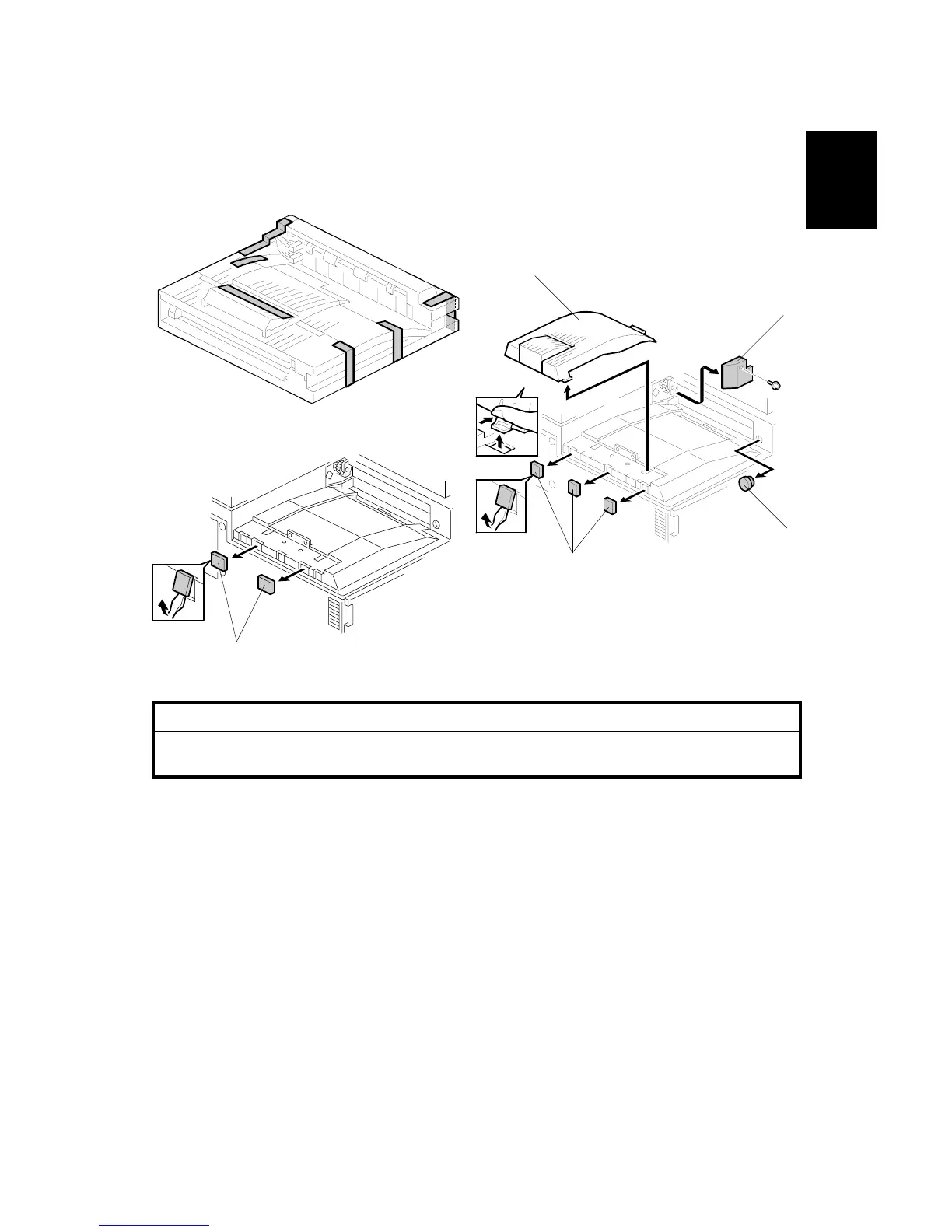

1. Unpack the bridge unit and remove all tapes shipping retainers.
2. Remove the inner tray [A].
3. On the side of the machine, remove the three small covers [B].
If the optional external output tray (A825) will be installed (instead of a
finisher), do Step 4.
4. Remove the two small covers [C].
5. Remove the cover [D] ( x 1).
6. Remove the cap [E].
B538I407.WMF
B538I500.WMF
B538I401.WMF
[D]
[B]
[E]
[A]
[C]
