3.14.2 LOWER RIGHT COVER
1. Duplex unit ( 3.4)
2. By-pass tray (3.6)
3. LCT (if installed)
4. Lower right cover [A] ( x5)
5. Vertical transport cover [B]
NOTE: Push the cover completely to the left and then press in on the right tab
to release the peg from the hole.

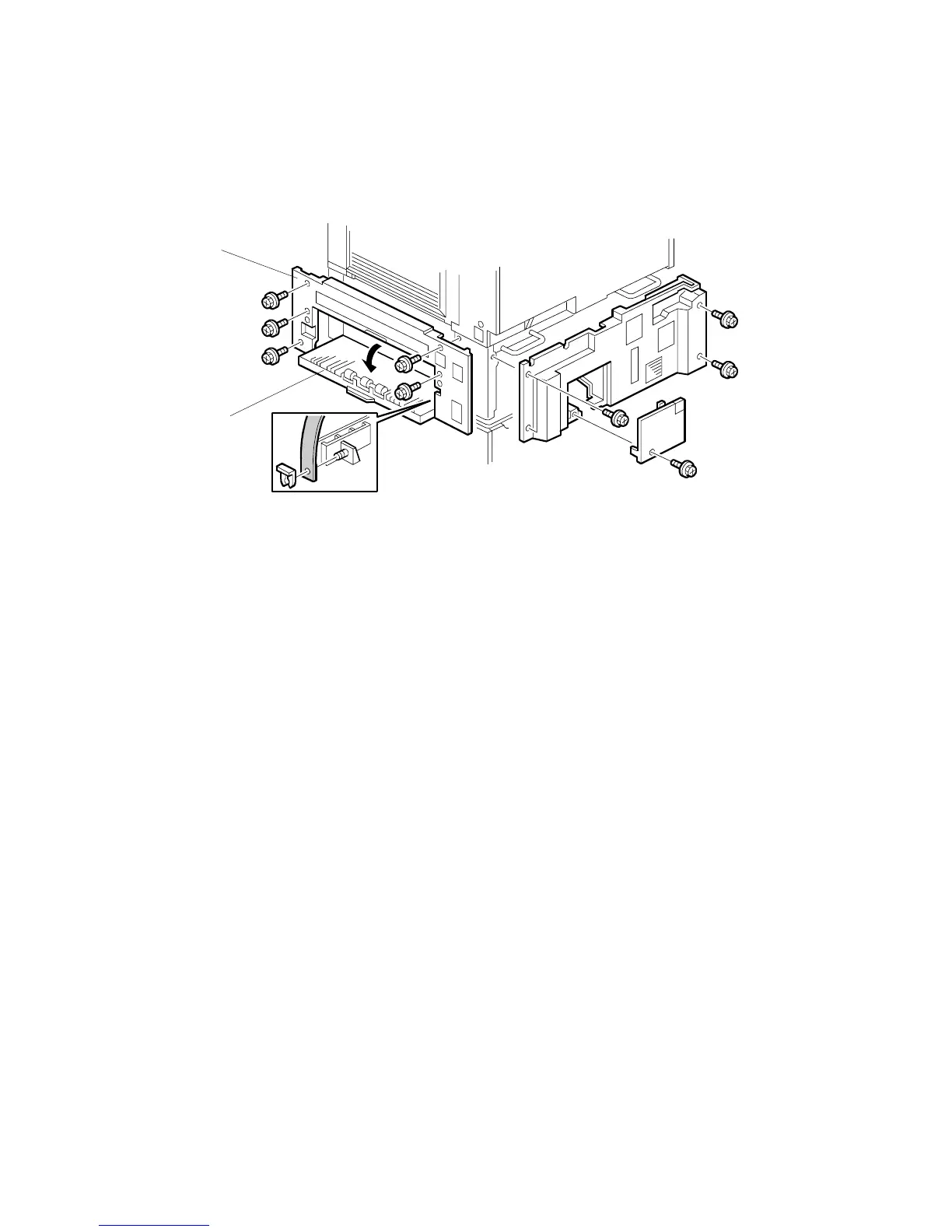

B195R957.WMF
