KEY COUNTER INSTALLATION 20 June 2005
1-64

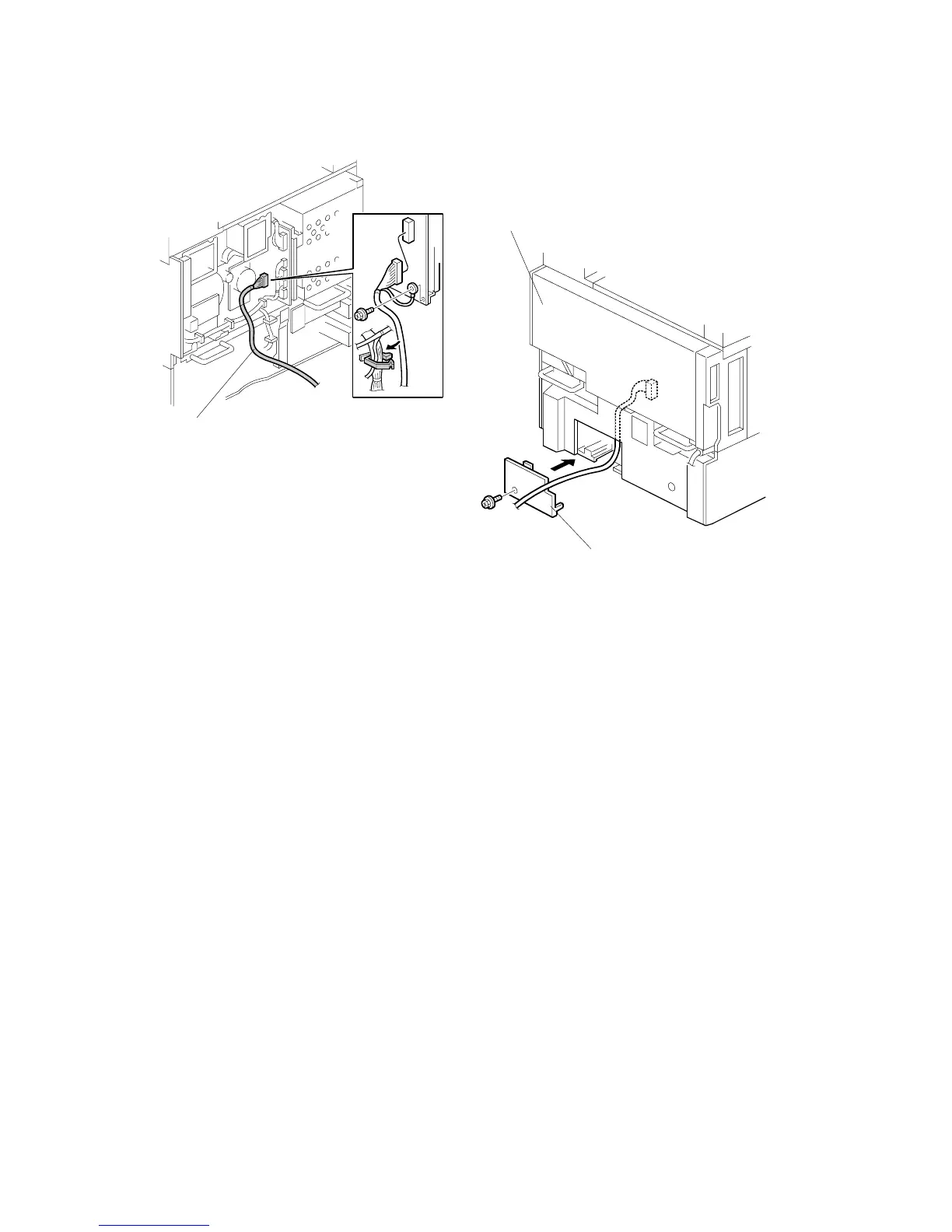

7. Connect the key counter connector [A] to CN211 on the I/O board.
8. Reinstall the covers [B] and [C].
A683I002.WMF
A683I003.WMF
[A]
[B]
[C]
