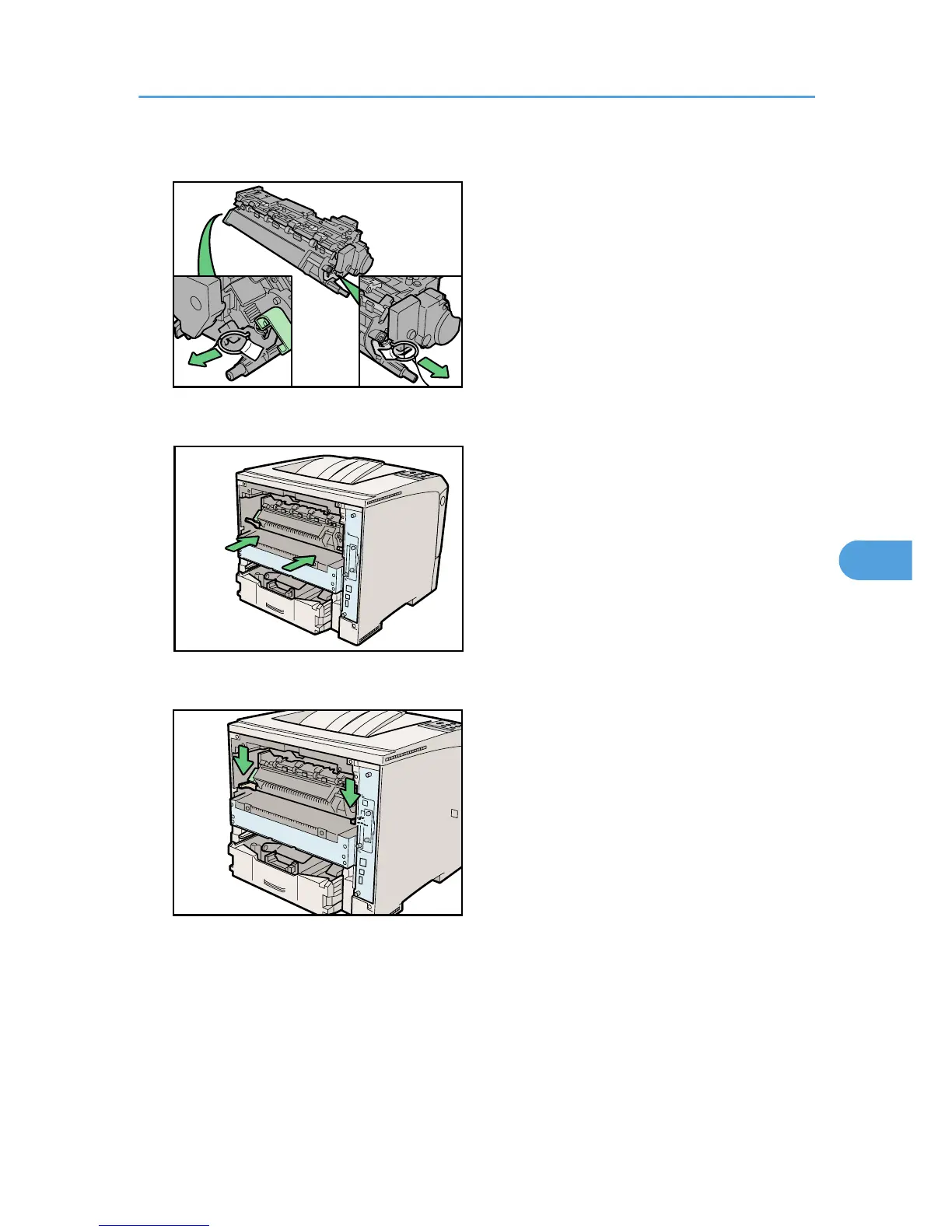

7. Pull out the pins on both sides of the new fusing unit.
BMU072S
8. Push the new fusing unit into the printer.
BMU073S
9. Push the lock levers of the fusing unit down until they click.
BMU074S
Replacing the Maintenance Kit
141
