Replace Maintenance Kit
8
1

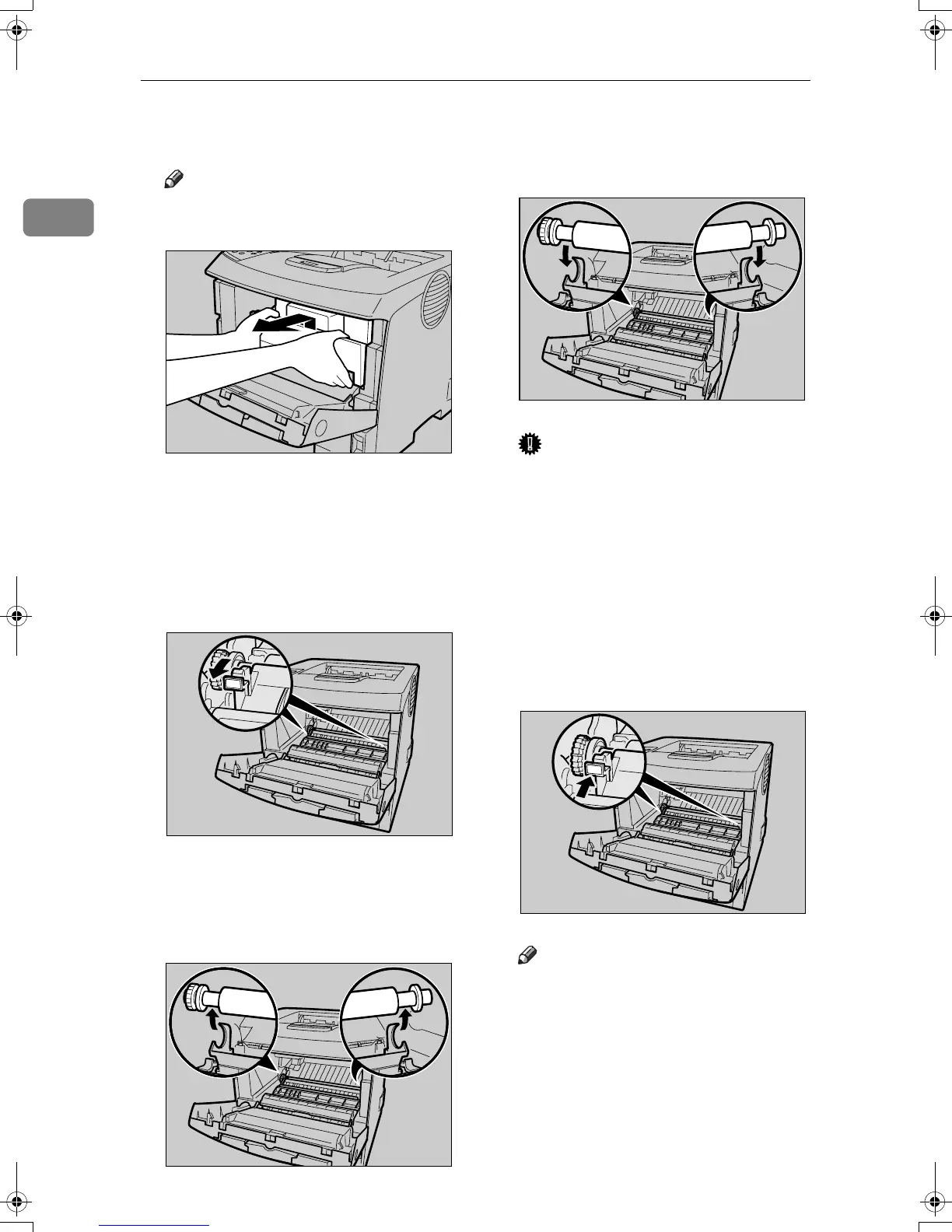

B Pull the toner cartridge out of the
printer, while raising the front side.
Note
❒ Be sure to put the used cartridge
down on a level surface.
C To avoid dirtying your hands with
toner from the transfer roller, wear
the gloves included in the mainte-
nance kit.
D Hold the lock levers (green parts),
and then pull them.
E Hold the green parts of the roller
on both sides, and then remove
the roller from the printer, as
shown in the illustration.
F Insert the new transfer roller on
the socket with the gear of the
roller positioned to the left.
Important
❒ Do not insert the roller on the
back of the socket. Doing so can
damage the printer.
❒ Insert the metallic part of the
roller on the socket. If you insert
the sponge part of the roller, the
roller might be damaged.
G Push the lock levers both ends of
the printer as shown in the illus-
tration, until they click into place.
Note
❒ When the transfer roller is set,
the transfer roller cover will re-
turn to its original position au-
tomatically.
AUB103S
AUB304S
AUB305S
AUB306S
AUB307S
SincereP1_pera_maintkitA-GB_F_FM_forPaper.book Page 8 Monday, October 16, 2006 3:48 PM
To Next Page
