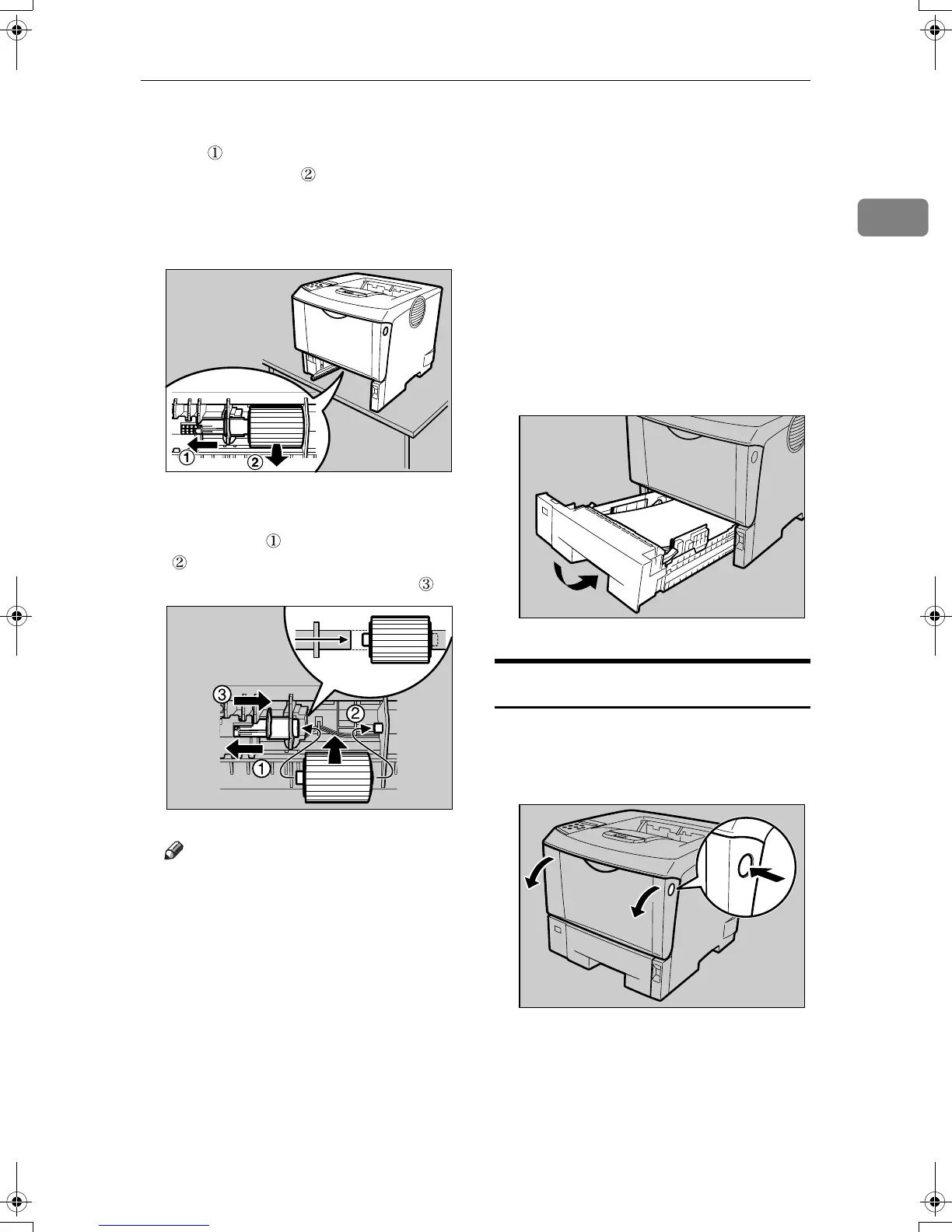

Replacing Parts
7
1
C Slide the green lock lever to the
left ( ), and then remove the pa-
per feed roller ( ).
The illustration shows an example
of the paper feed roller as installed
in the printer.
D While sliding the green lock lever
to the left ( ), set the new roller
( ). Then, return the green lock
lever to its original position ( ).
Note
Confirm that the green lock le-
ver is securing the roller correct-
ly by checking that the new
roller rotates smoothly.
E If the printer is equipped with the
optional paper feed unit(s), fol-
low the same procedure to replace
its paper feed roller.
If you have installed two paper
feed units, replace both their paper
feed rollers.
F Place paper in the paper trays and
additional removed paper trays.
Lift the front of the tray, and then
slide it carefully into the printer
until it stops.
Replacing the Transfer Roller
A While holding the front cover with
hands on both sides, press the re-
lease button to open it.
AUB309S
AUB310S
AUB111S
AUB101S
