1.
Controller cover (
page 226
)
2.
Upper left cover (
page 226
)
3.
Left rear cover (
page 227
)
4.

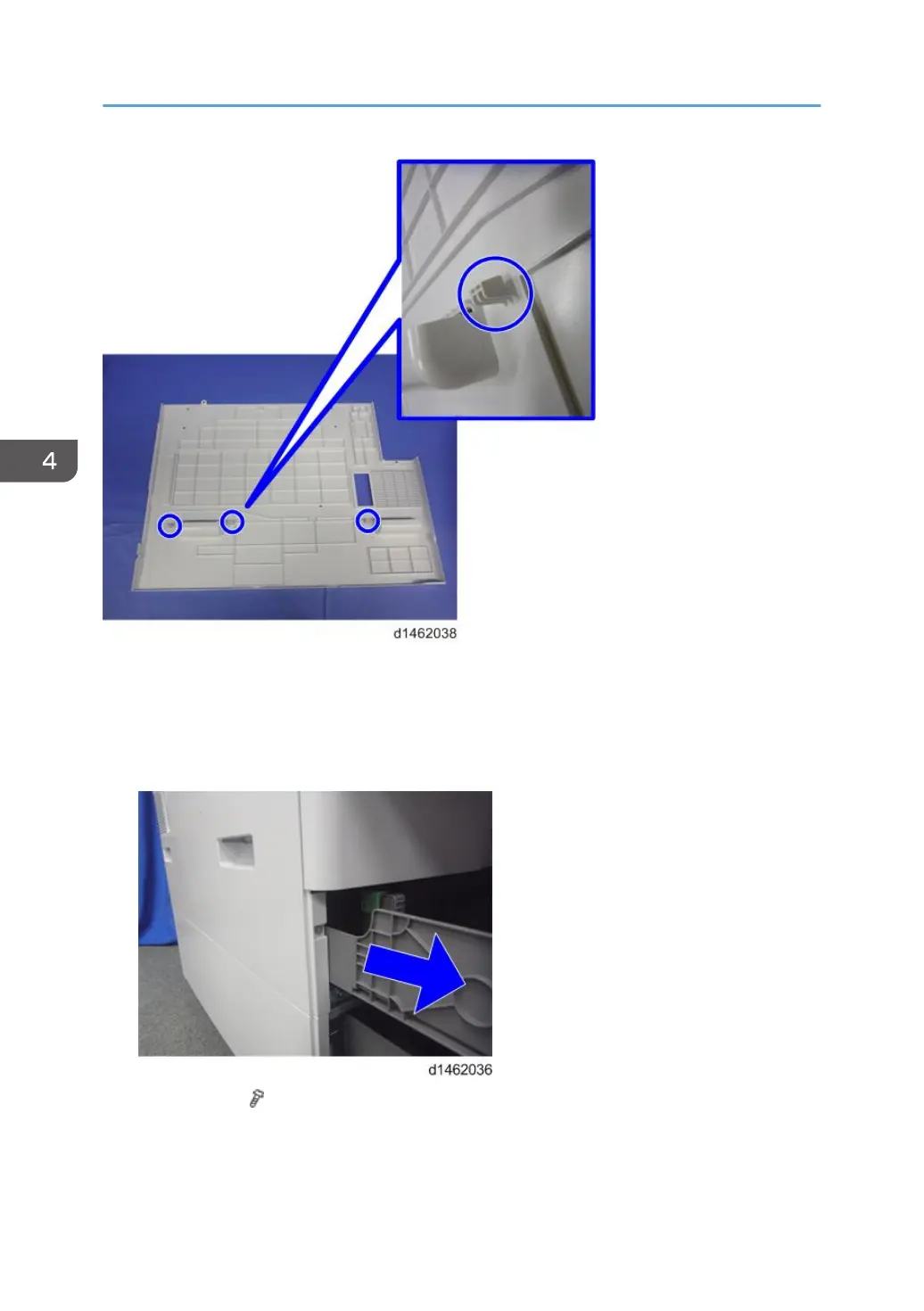

Open the 2nd paper feed tray slightly.
5.
Left cover [A] (
×5)
Remove it while pressing down.
4. Replacement and Adjustment
228
