Ricoh MET-C1 - Image Transfer Unit

Image Transfer Unit
Image Transfer Belt Unit
• Note that if the two levers [A] are not pointing up, the image transfer belt unit cannot be inserted.
• Before you remove or attach the image transfer belt unit, remove the duplex unit and open the
paper transfer unit.

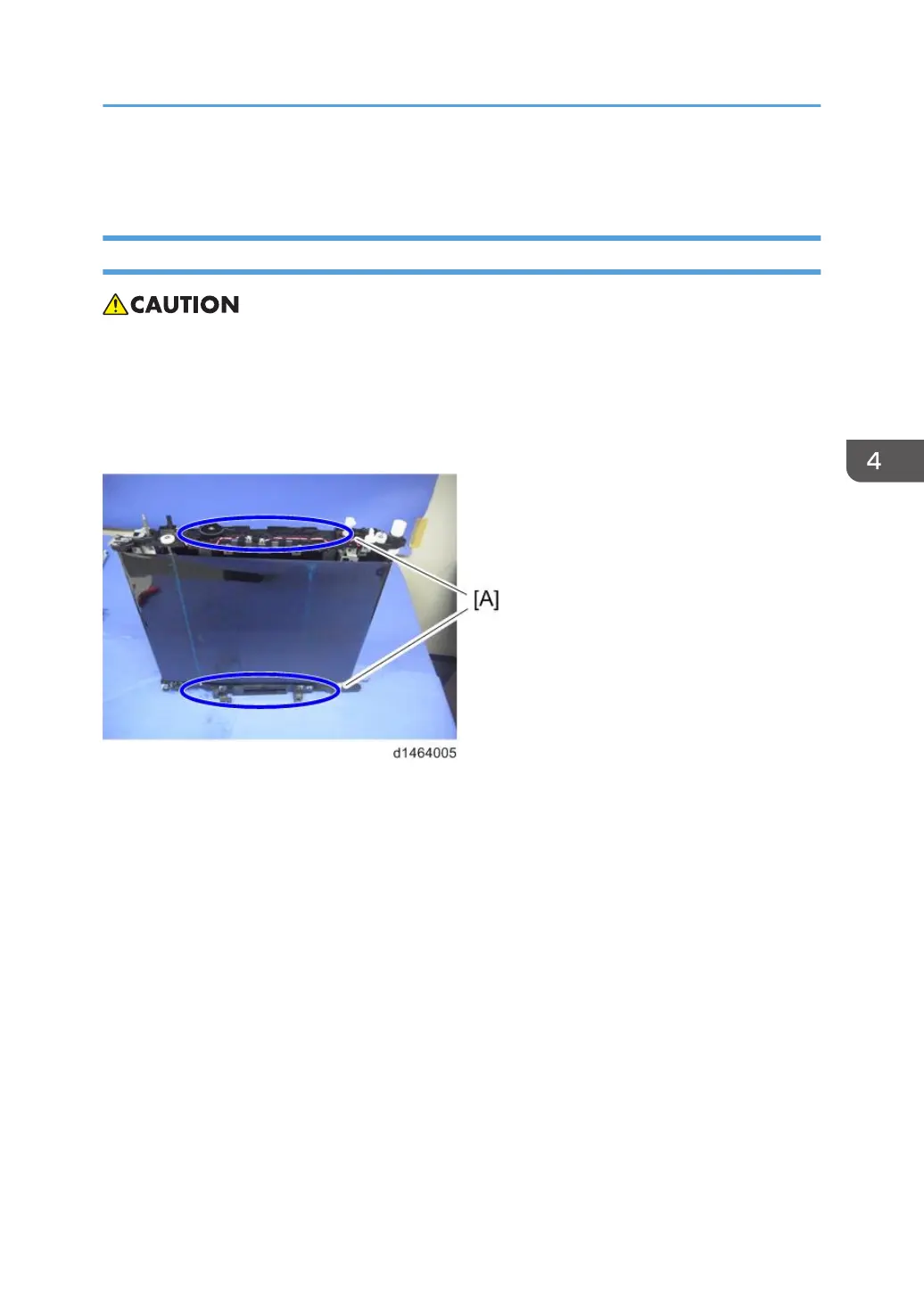

• Do not touch the rollers but hold the upper/lower resin part [A] when you lift the Image Transfer
Unit. Touching the rollers may cause poor image quality.
Image Transfer Unit
293
