Ricoh MET-C1 - Thermostat Unit

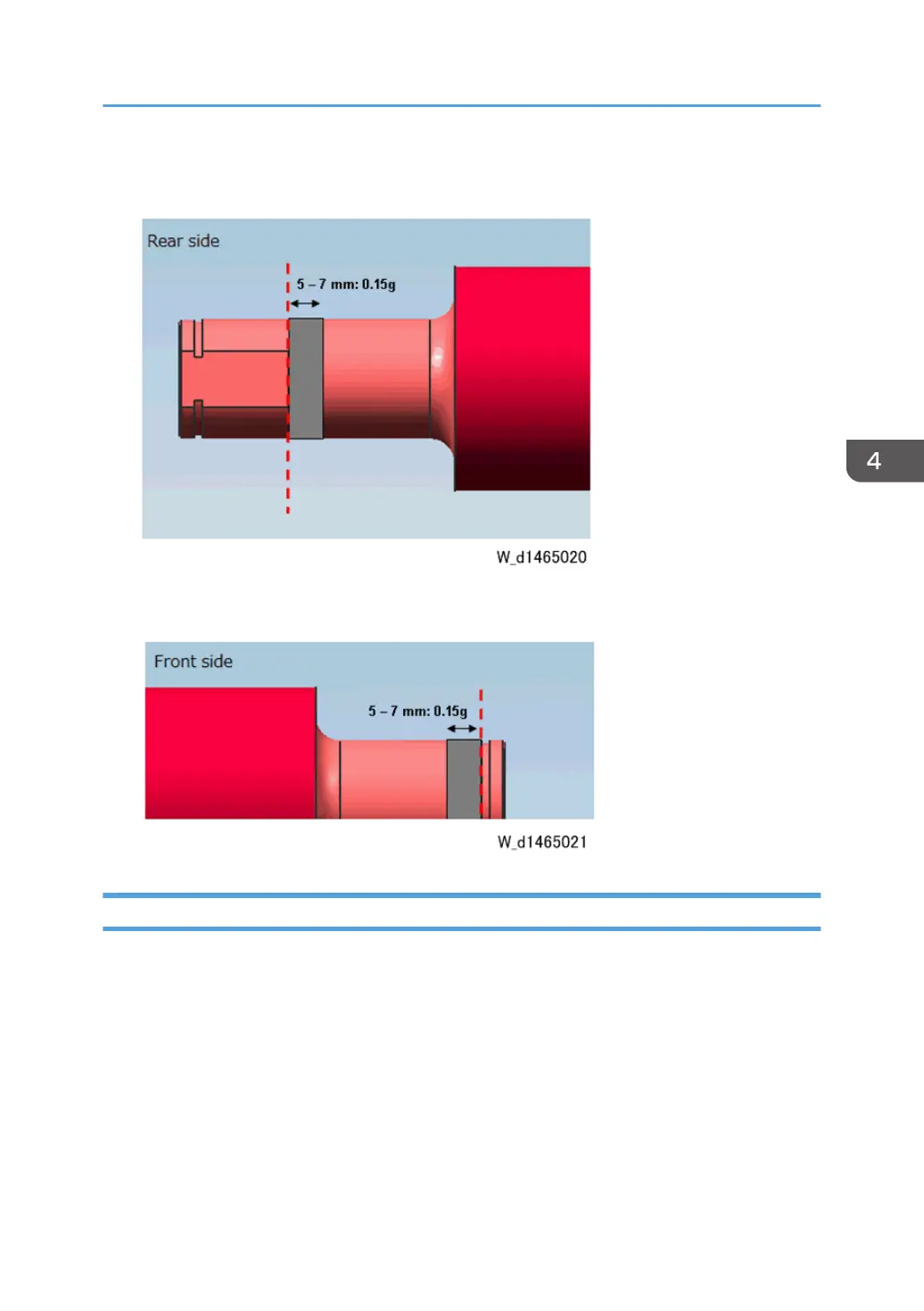

3. Apply the grease (FLUOTRIBO MG GREASE) to the rear shaft of the pressure roller at
5-7mm from the cut edge.
4. Apply the grease (FLUOTRIBO MG GREASE) to the front shaft of the pressure roller at
5-7mm from the C-ring notch.
Thermostat Unit
1. Left frame (Heating sleeve unit)
Fusing Unit
353
