Ricoh MET-C1 - Sub Hopper

Sub Hopper
K

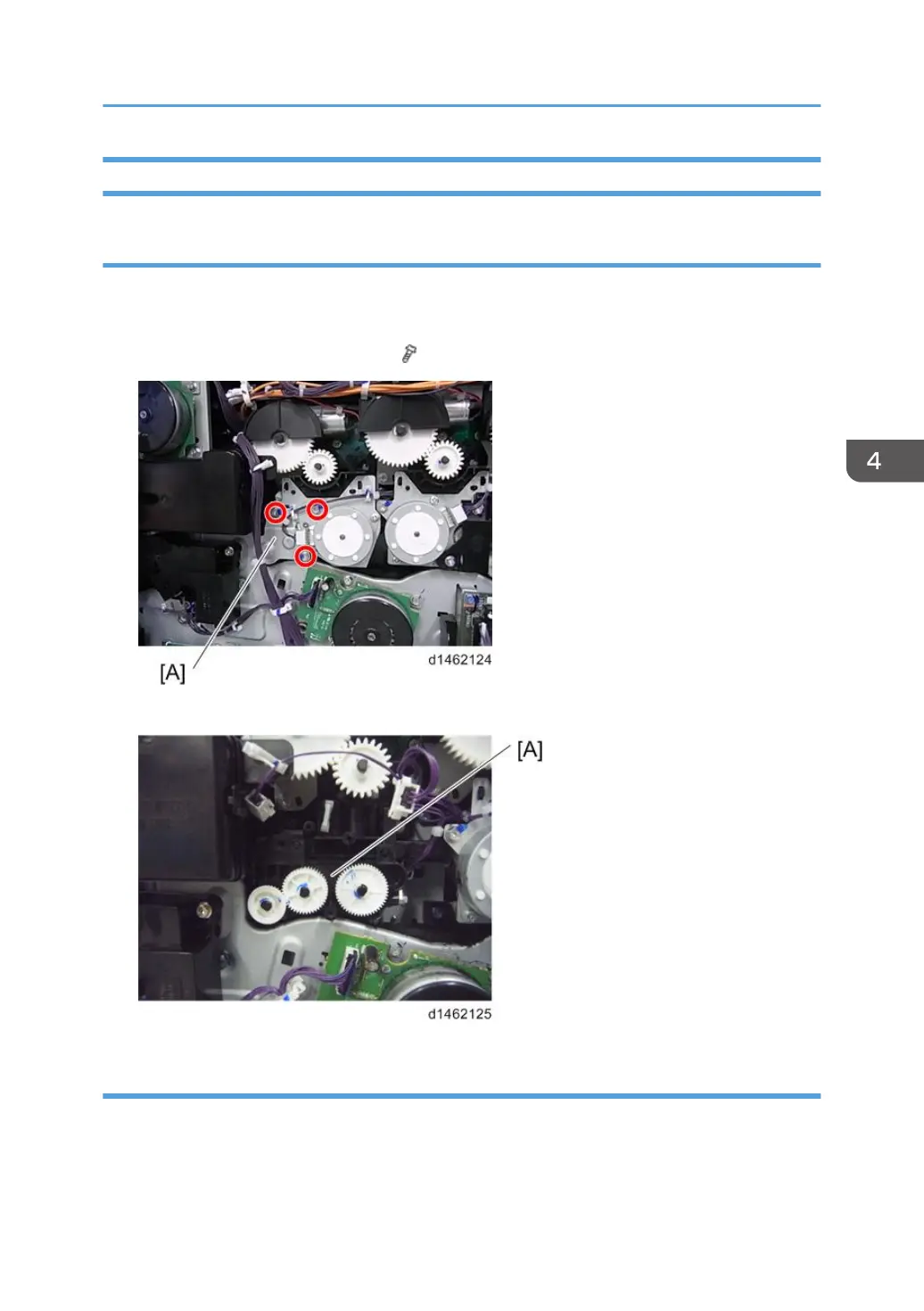

1. Pull out the image transfer unit about 5cm.
2. Controller box. (page 317)
3. Toner transport motor unit (K) [A] ( ×3)
4. Sub hopper (K) [A]
C
1. Pull out the image transfer unit about 5cm.
2. Controller box. (page 317)
Drive Unit
325
