Ricoh MET-C1 - Fusing Shield Check

Fusing Shield Check
<Procedure 1: Operation check for the lower side of the shield detection feeler>

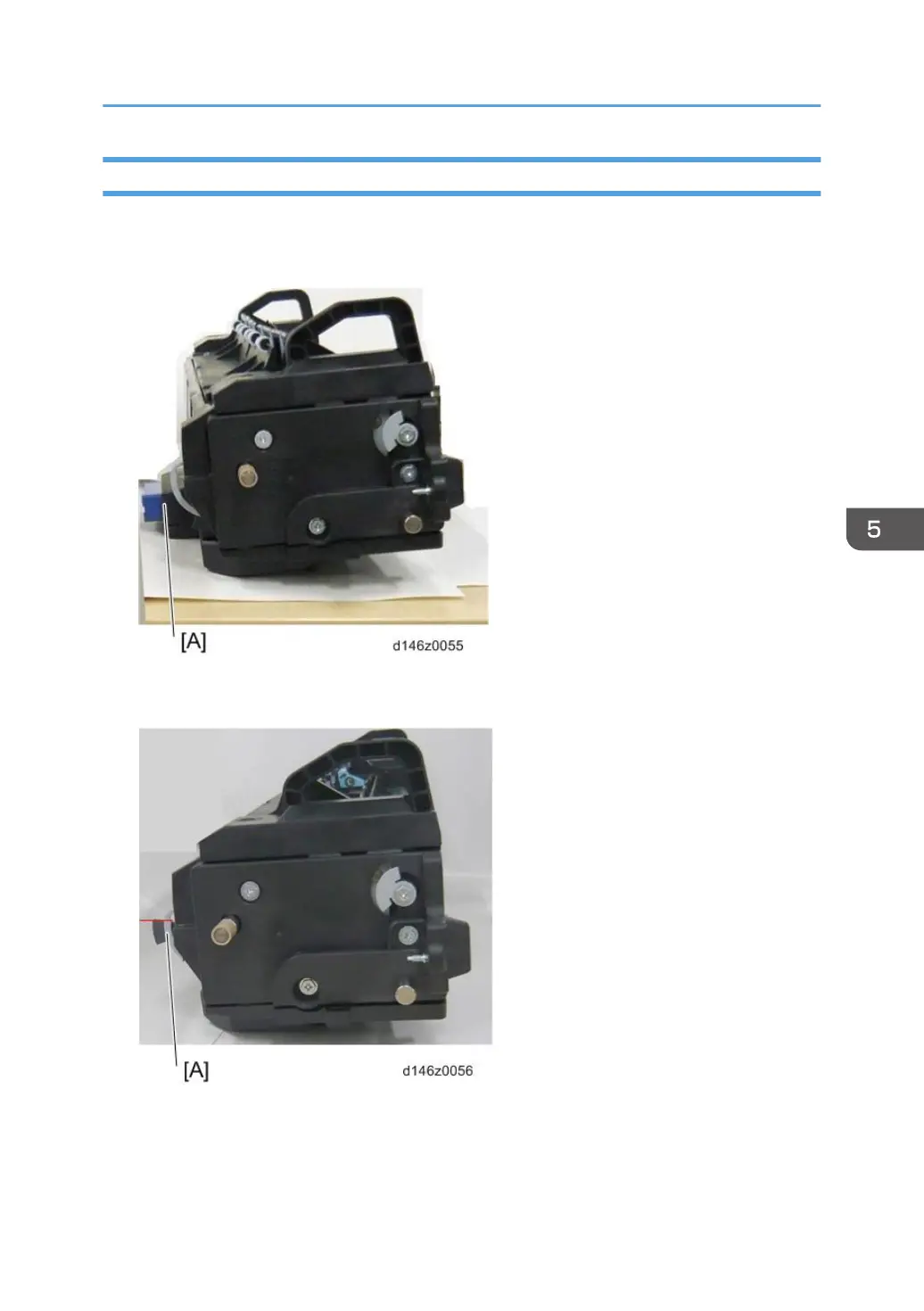

1. Place the fusing unit on a flat place and tilt it towards the drawer connector [A].
2. Move the shield drive gear with your hands to put the upper surface of the feeler [A] in a
horizontal position.
3. Keep your fingers off the shield drive gear.
When SC549 is displayed
