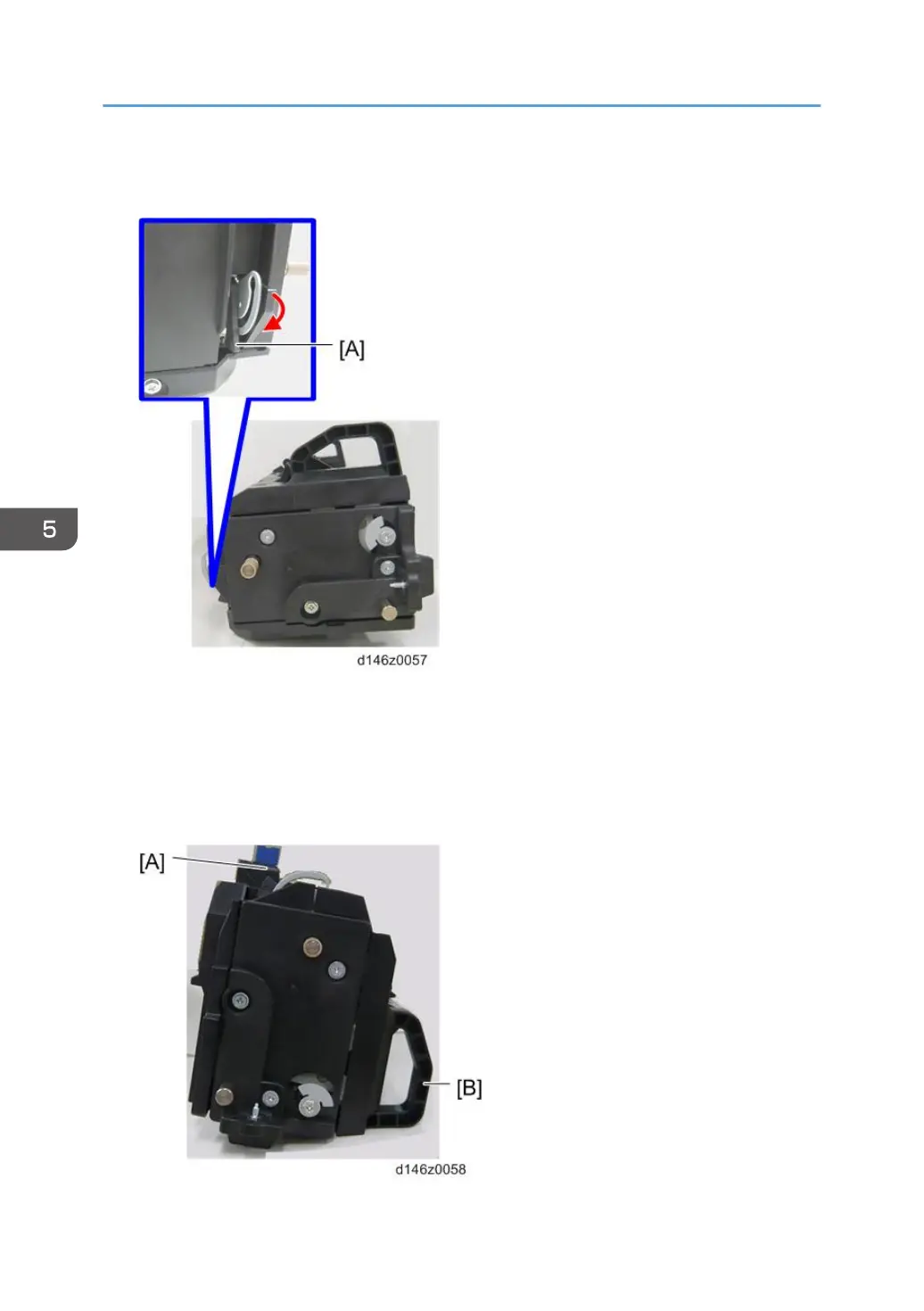

4. Make sure that the shield detection feeler [A] moves down to the lowest point by its own
weight.
• The feeler moves smoothly: OK
• The feeler does not move / stops during moving / moves but slowly: NG
<Procedure 2: Operation check for the upper side of the shield detection feeler>
1. Place the fusing unit on a flat place with the drawer connector [A] turned up and the
handle [B] touching a flat surface.
