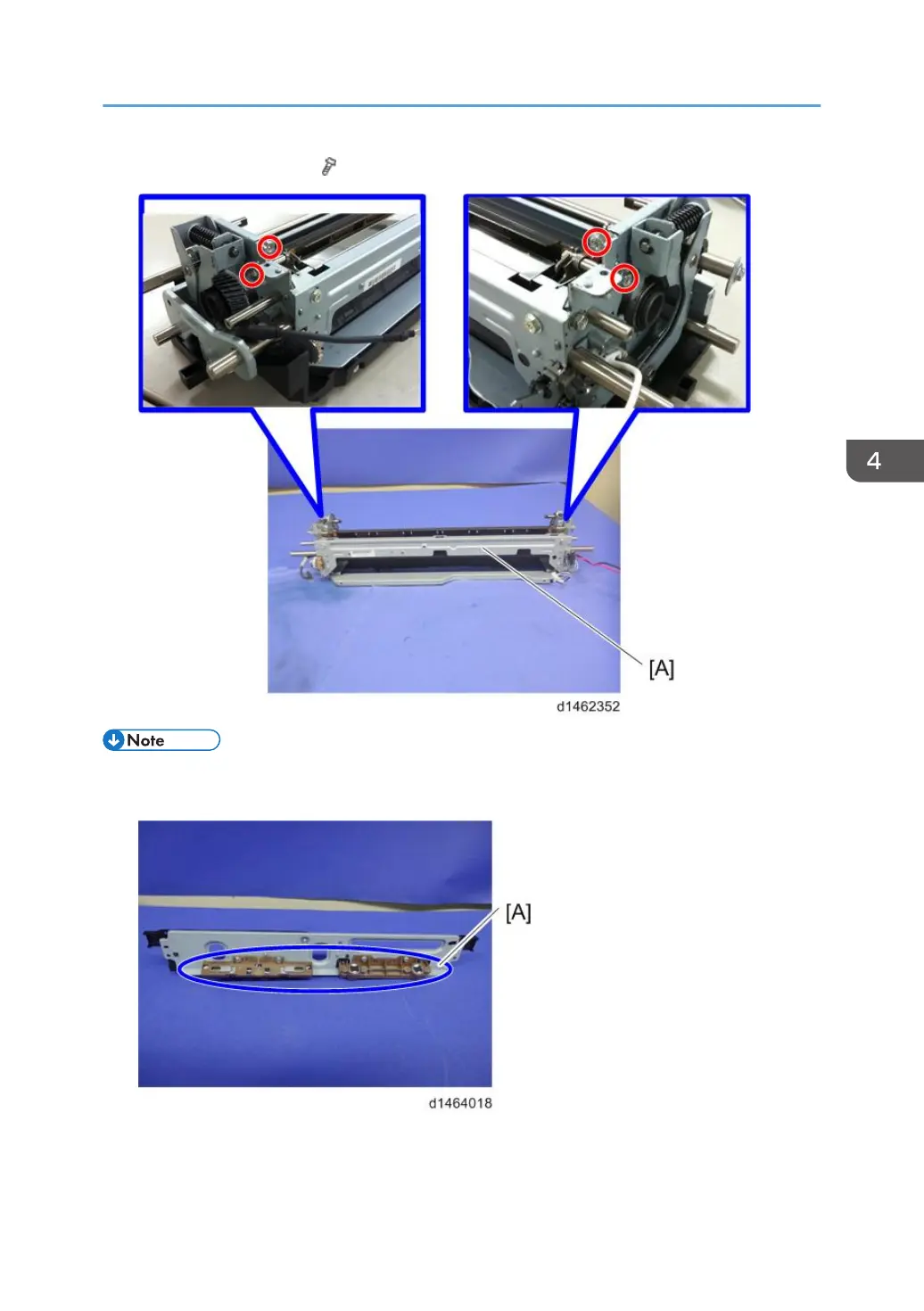

8. Heating sleeve unit [A] ( ×4)
• Be careful not to touch the temperature sensor unit [A] against the heating sleeve unit when
installing the electrical unit in the fusing unit.
Fusing Unit
349
