1.Replacement and Adjustment
110
open the clamps to release the harness.

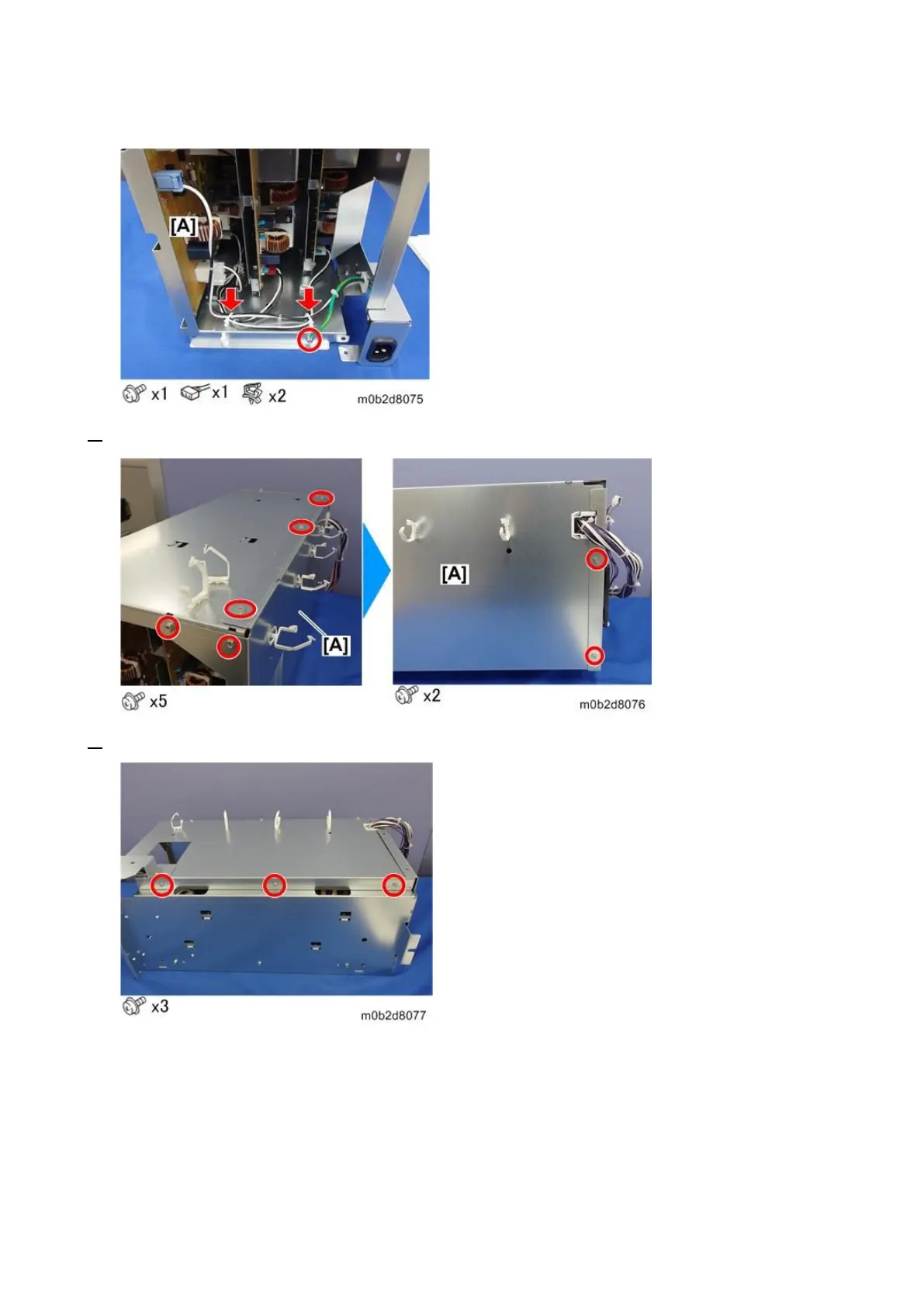

4. Remove the screws on the top and side of the PSU left cover [A].
5. Lay down the PSU box [A] to remove the screws on the lower side.
