1.Replacement and Adjustment
112

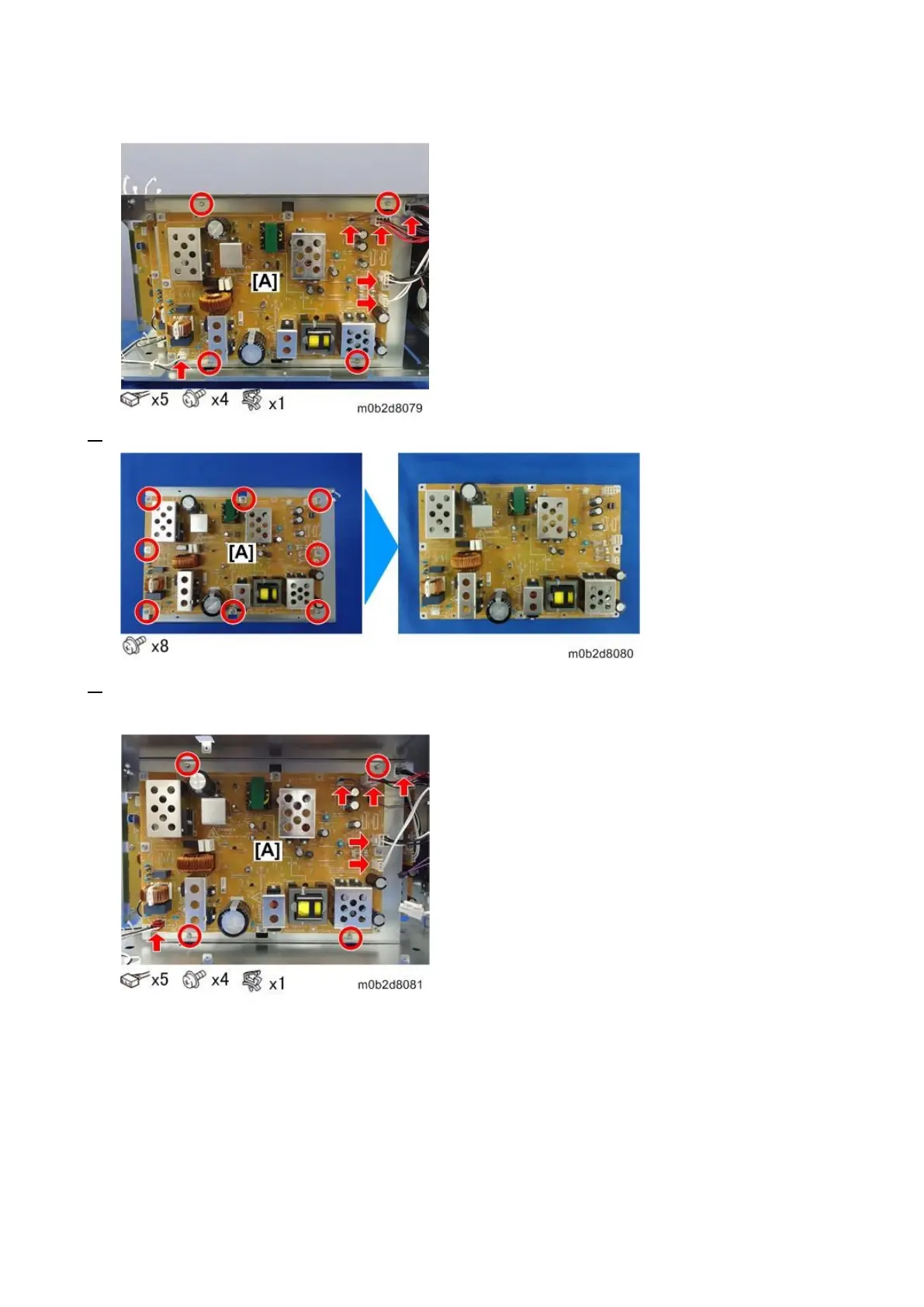

corner of the bracket to detach PSU 1 with its bracket.
8. Detach the board from the bracket.
9. Pull out the connector and remove the screws on PSU 2 [A], and then open the clamp at the rear
corner of the bracket to detach PSU 2 with its bracket.
