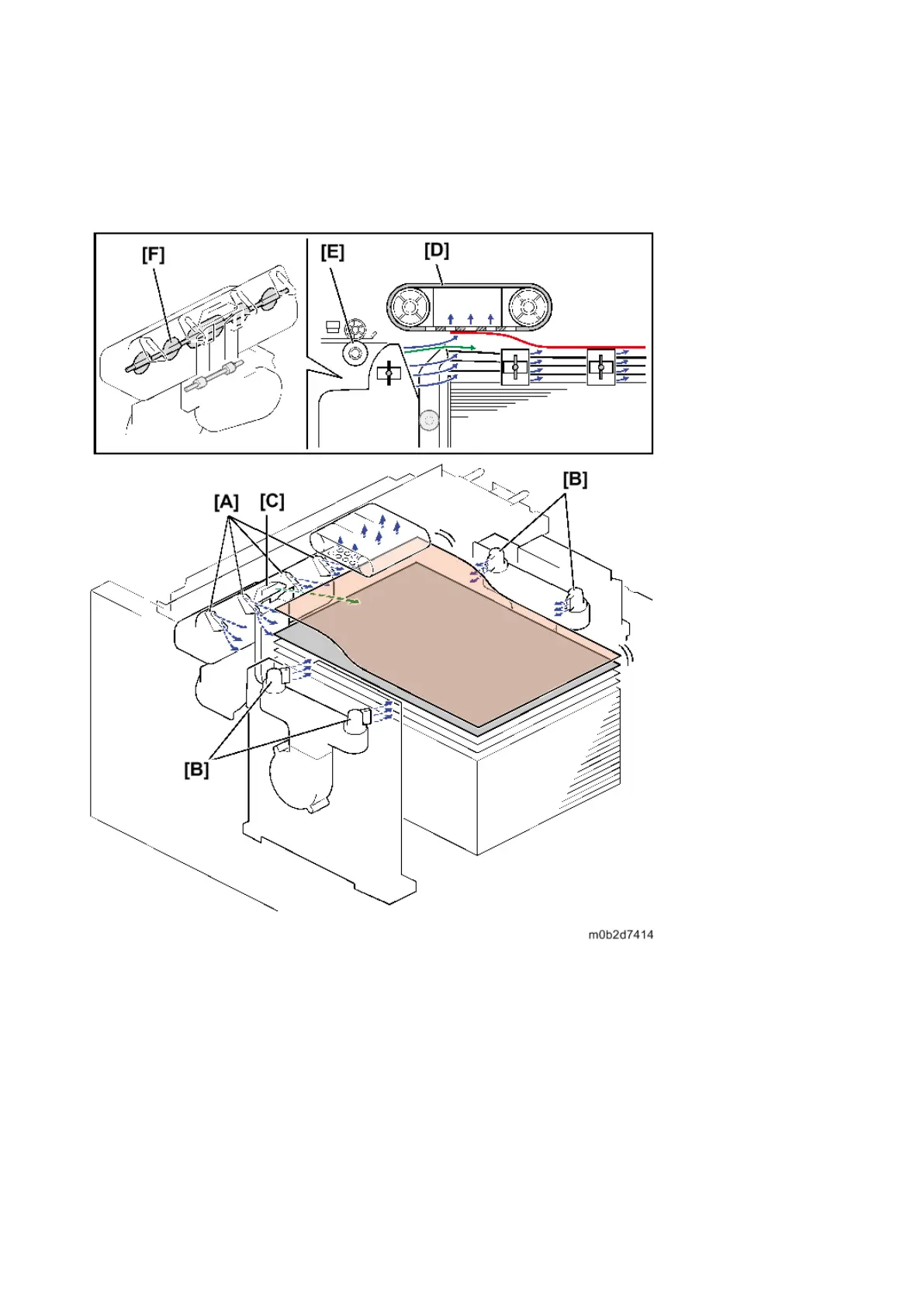

transport roller [E] by the paper feed belt [D], and then fed to the vertical transport unit.
Air blown from the separation fan and float fan is switched on/off by the shutter [F].
The air blown from the side air nozzles assist float and suction of the next sheet of paper. Also, it
prevents double feed.
The return fan [A], return fan shutter [B], and return solenoid [C] near the feed nozzle improve the
separation quality. Additionally, in the feed belt unit, the suction fan shutter [D] and suction fan shutter
solenoid [E] prevent paper scratches during paper feed by the belt, by controlling the suction on the
belt.
