2.Detailed Descriptions
144

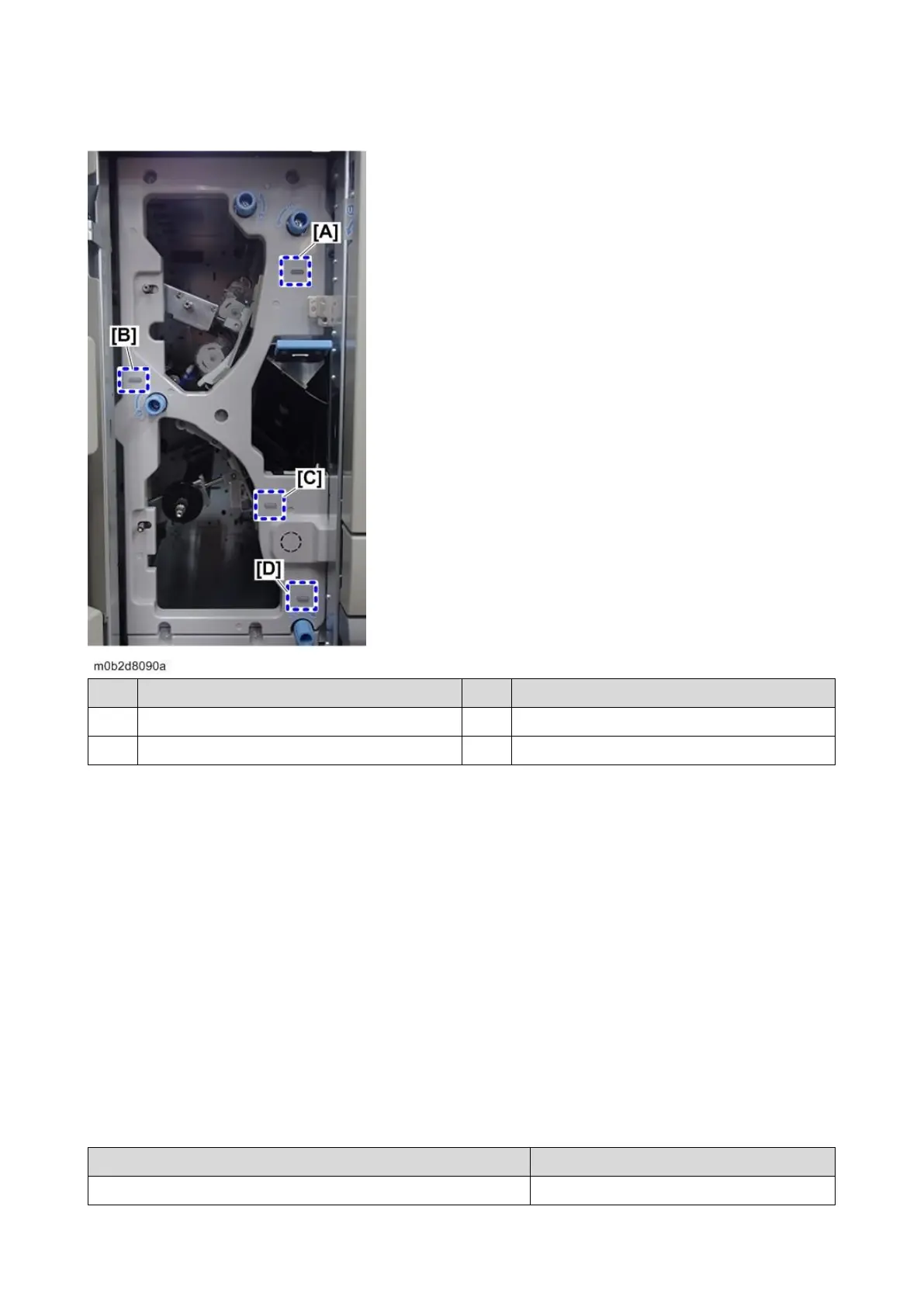

Jam LED Layout
No.
Name
No.
Name
[A]
Tray 1 Vertical Transport Lever LED
[C]
Horizontal Transport Lever LED
[B]
LCIT Exit Knob LED
[D]
Tray 2 Vertical Transport Lever LED
Jam Sensors and Jam LEDs
 When a jam (including a jam detected during initialization) occurs, a jam sensor detects it, and then
the corresponding LED blinks.
 Jam LEDs blink when the front door is open in a jam condition.
 When multiple LEDs blink to indicate jam locations, they blink at the same time.
 Jam sensors always monitor even when you are handling a jam (because the sheet following a
jammed sheet moves when you rotate a jam removal knob).
 The LED stops blinking two seconds after a jam sensor switches from on to off. If the sensor turns
on again within the two seconds, the LED keeps blinking.
 All of the LEDs turn off when the front door is closed. But if a jam is detected during initialization, a
jam LED blinks when the front door opens.
Jam Sensor
Jam LED
Feed 1 Sensor
Vertical Transport 1 LED
