Jam Sensor
Jam LED
Transport 1 Sensor
Feed 2 Sensor
Vertical Transport 2 LED
Transport 2 Sensor
Bypass Vertical Transport Sensor
-
Vertical Transport 1 Sensor
Vertical Transport 1 Exit Sensor
Vertical Transport 2 Exit Sensor
LCIT Exit Sensor
LCIT Exit LED
Horizontal Transport Entrance Sensor
-
Horizontal Transport Middle Sensor
-
Horizontal Transport Exit Sensor
Horizontal Transport LED
Vertical Transport Entrance Sensor
-
Anti-condensation

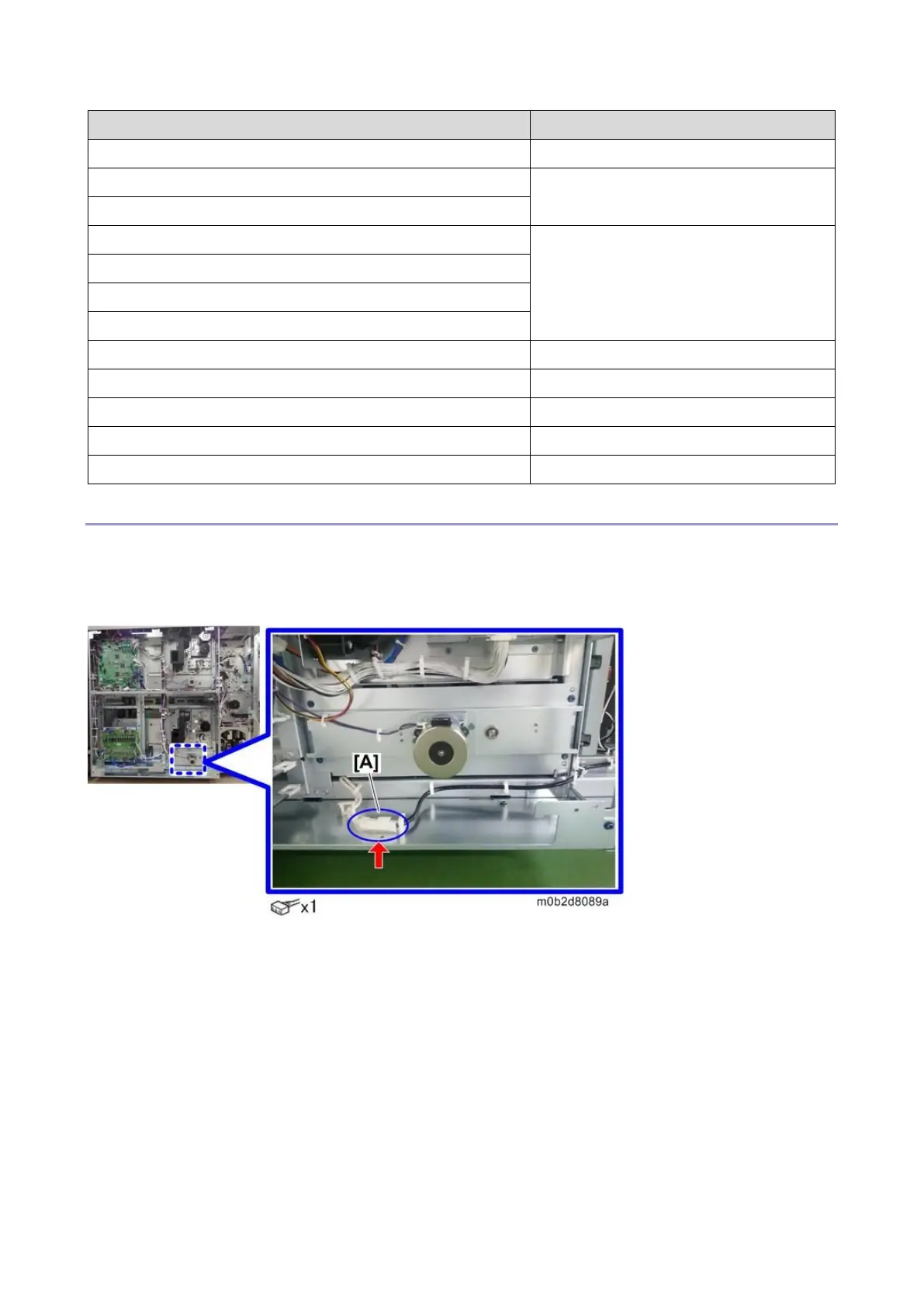

An optional tray heater can be installed under paper feed tray 2.
It is not operated by the ON/OFF switch, but is always ON when the AC power of the vacuum feed LCIT
is plugged in. If you wish to turn the heater OFF, the heater's relay connector [A] must be disconnected.
