‐14‐

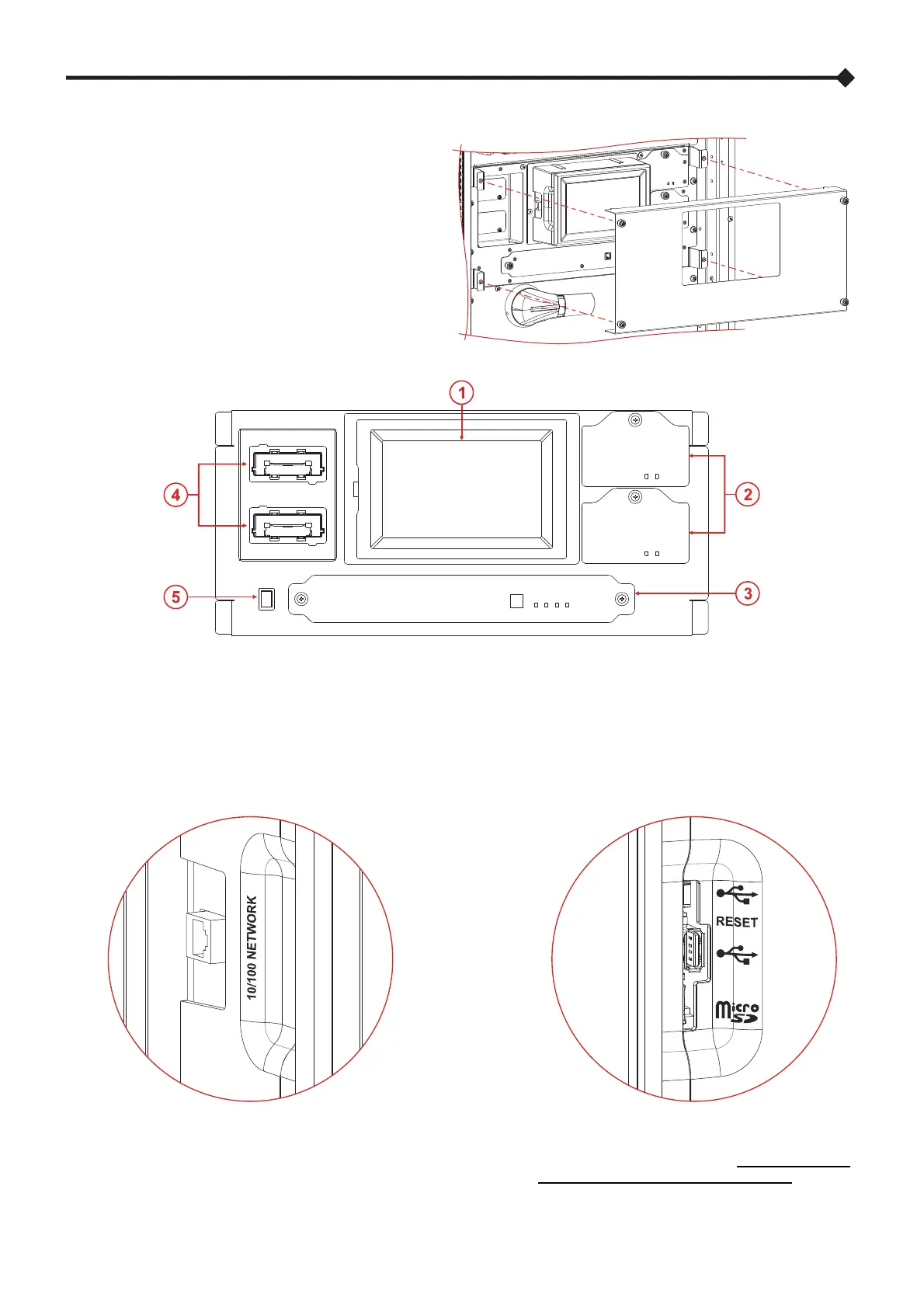

MPX 100 CBC USER INTERFACE
Unscrew the fastening knobs and remove the protection
cover to access the components within the Connectivity
Panel (CP).
Main Communication Unit (MCU)
Monitoring Unit (MU)
Power Supply Units (PSU 1 & 2)
Communication Slots for housing the
expansion cards
Cold Start [optional]
A network connection port is located on one side of the
display to enable the remote operation of the system.
The right side of the display is equipped with
connection ports (SA ports) that are reserved for
trained service personnel only. Do not connect to
the SA ports without specific instructions.
NOTE: For further information refer to the chapter “Remote Communication and accessories”
