“BYPASS MODULE” PAGE

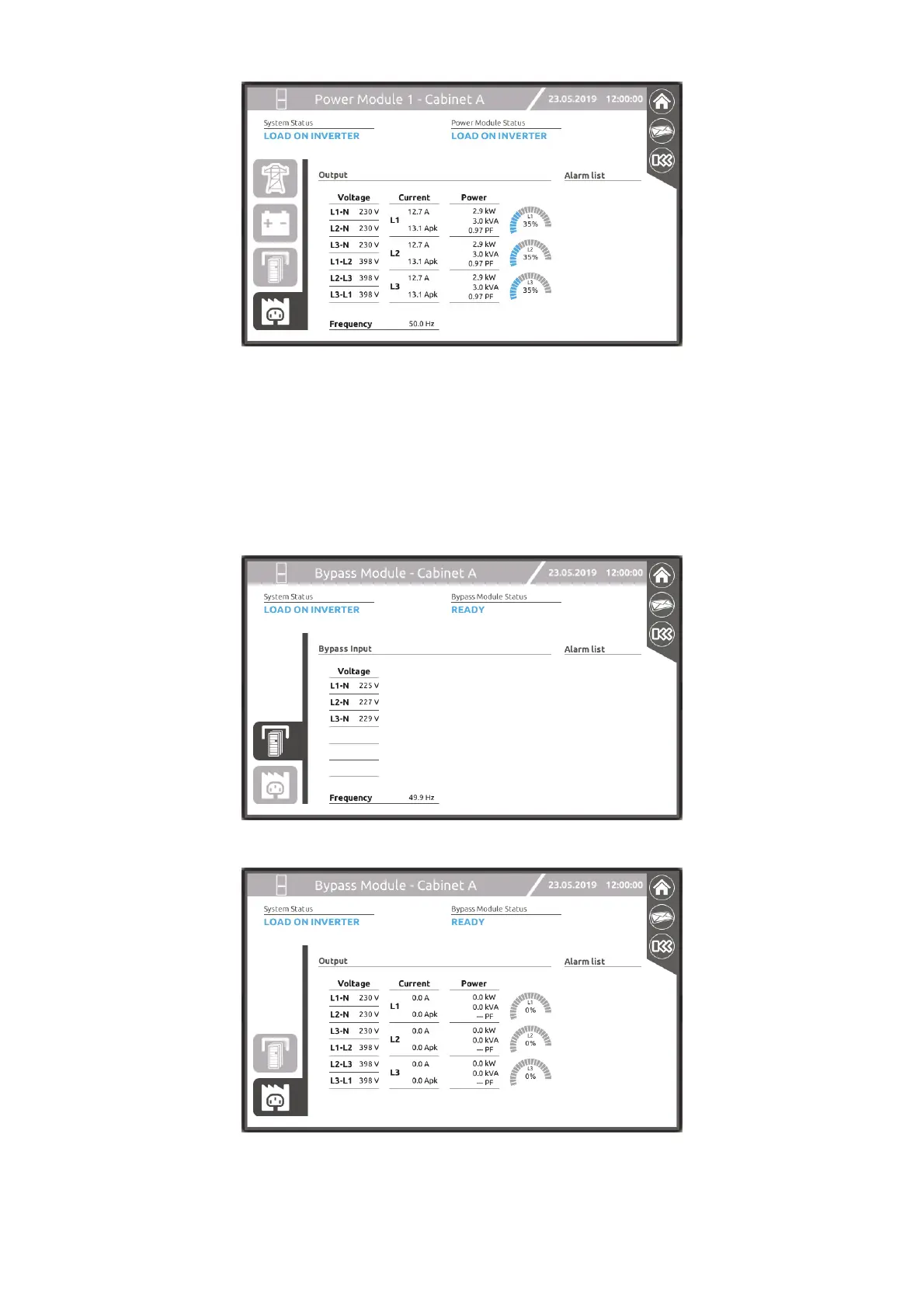

The frequency and voltage of each phase are displayed on the bypass input values page.
The bypass voltages and currents are displayed in the output values page. During inverter mode operation, bypass currents are
always zero, while the voltages on the bypass output will be visible. Alternatively, during normal bypass operation and in presence
of a load, the bypass current values will reflect the load levels applied.
The alarm list on the right of the page shows details of any anomalous conditions/alarms currently present on the selected BM.
