‐48‐

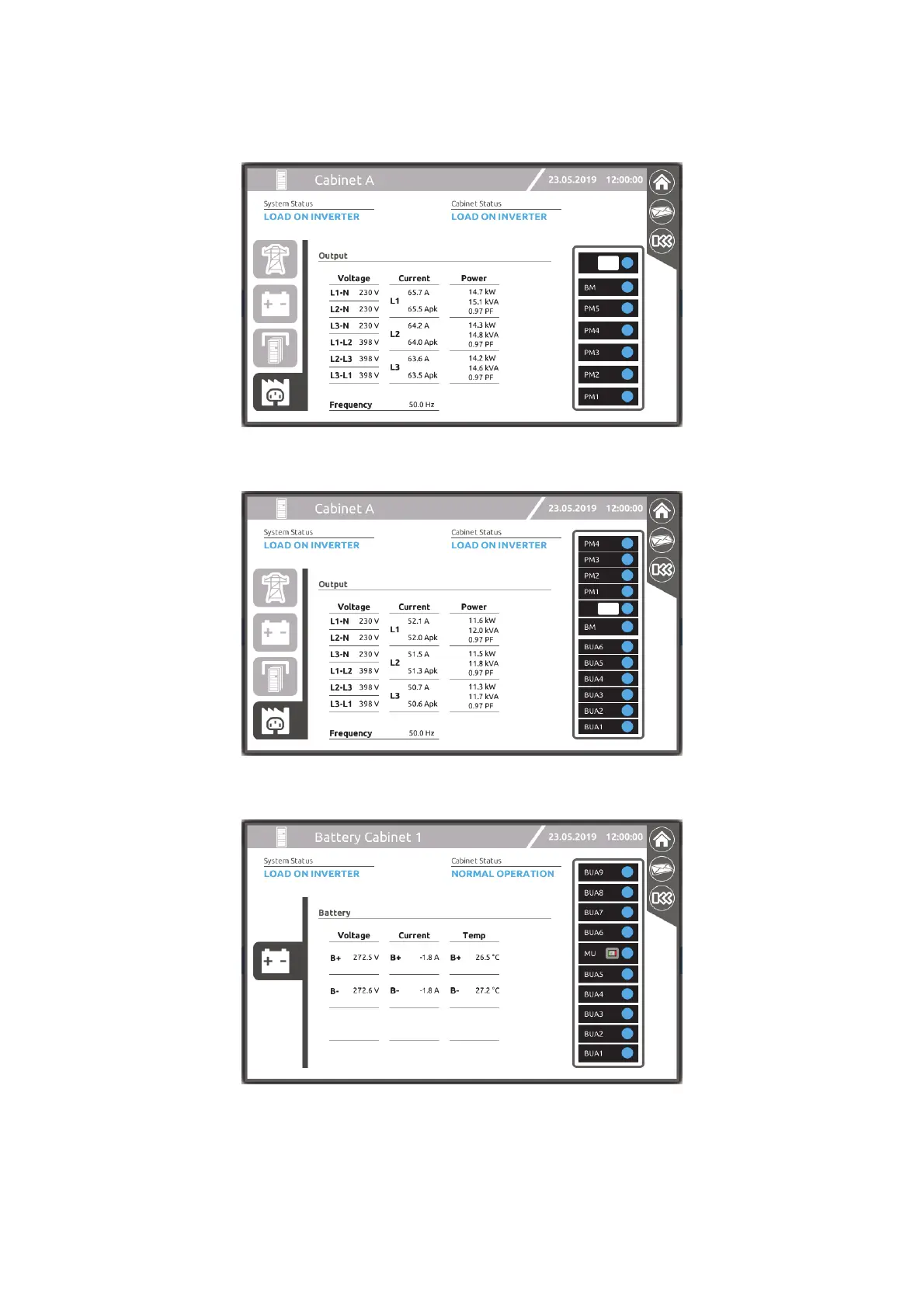

“CABINET” PAGE
The "Cabinet" page displays the status of all of the modules and of the main electrical values of the cabinet indicated on the status
bar.
Power Cabinet MPX 130 PWC
Combo Cabinet MPX 100 CBC
Battery Cabinet MPW 170 BTC
By pressing the left Tab menu, it is possible to display the electrical values of the cabinet related to the input, the batteries, the
bypass line and the output.
Touching the relevant module (PM, BM or MU) brings up the associated detailed information page.
