INSTALLING THE CABINET
For the installation of the Modular UPS Power Cabinet and the Modular Battery Cabinet please
refer to the “MPX Installation manual”.
MODULES AND UNITS INSTALLATION
The cabinet consists of hot-swap modules and units which allow quick maintenance and expandability of the system. The hot-
swap parts are:
 Power Module (PM)
 Bypass Module (BM)
 Monitoring Unit (MU) [MPX 100 CBC; MPW 170 BTC]
 Power Supply Unit (PSU)
 Main Communication Unit (MCU) [MPX 100 CBC]
 Connectivity Panel (CP) [MPX 130 PWC]
 Battery Unit (BU) [MPX 100 CBC; MPW 170 BTC]

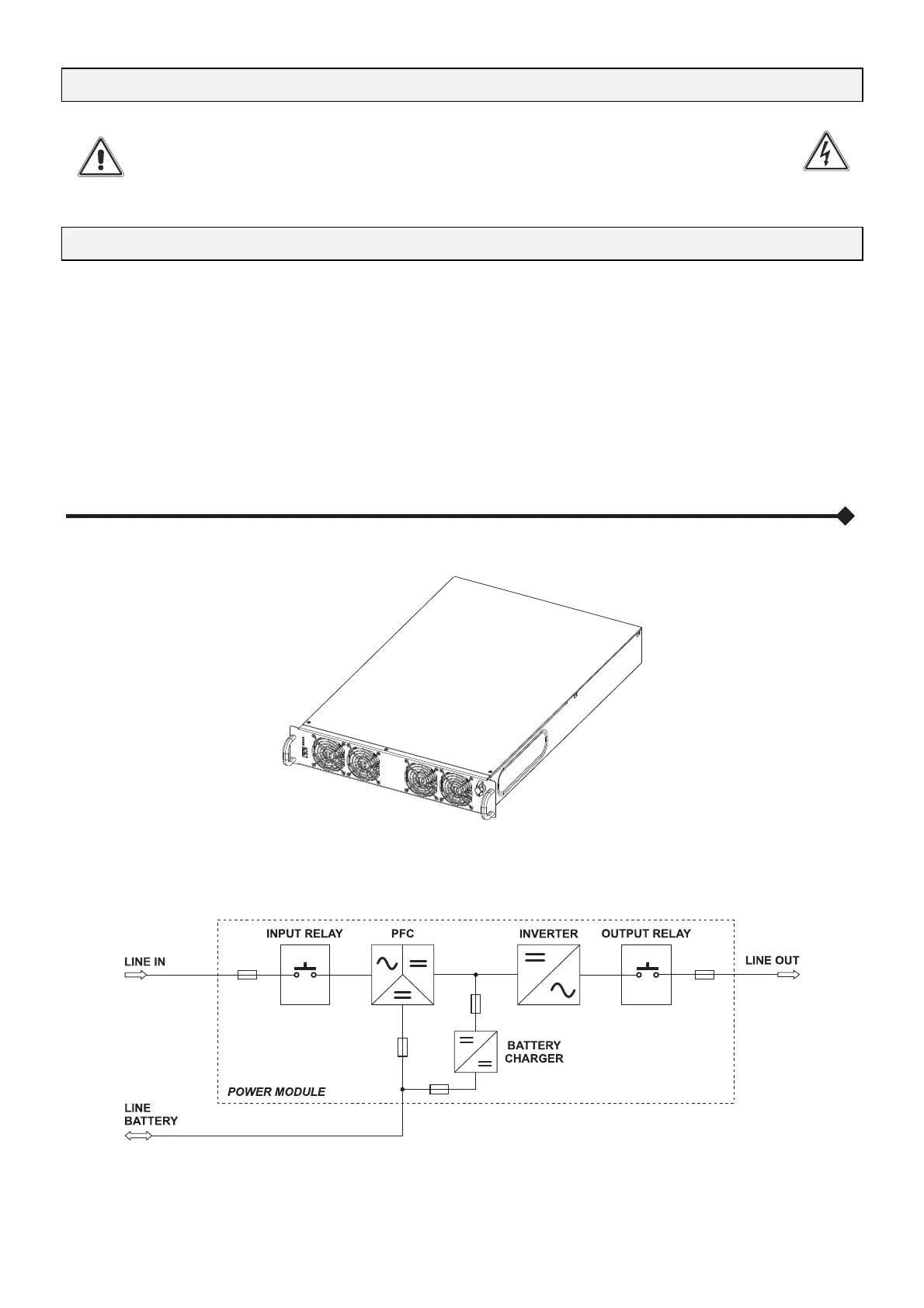

POWER MODULE (PM)
The Power Module (PM) is a three-phase double-conversion UPS module available in two sizes: 15kW (MPX 15 PM) and 25kW
(MPX 25 PM). The wiring diagram of the PM, which shows its individual components, is provided below:
Power Module wiring diagram
