Riello UPS MULTI POWER MPX - Monitoring Unit Page Details; MU Switches and Sensor Status; MU Slots Status

‐51‐
“MONITORING UNIT” PAGE

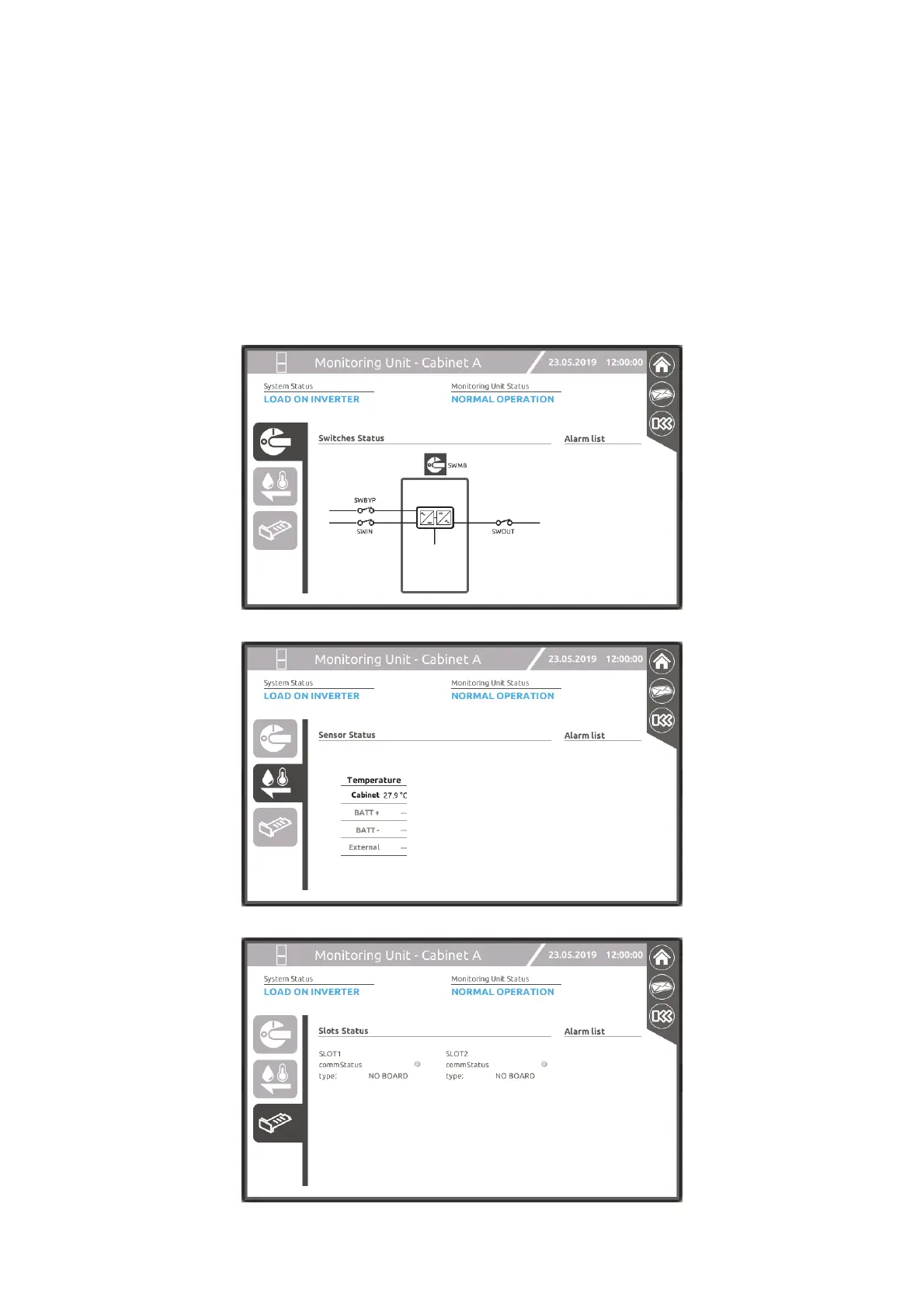

The Switches Status, the Sensor Status and the Battery Status (only for Combo Cabinet MPX 100 CBC or Battery Cabinet MPW
170 BTC) can be viewed in this page.
The alarm list on the right of the page shows details of any anomalous conditions/alarms currently detected by the selected MU.
 SWBYP = Bypass Switch (external);
 SWIN = Input Switch (external);
 SWBATT_EXT = Battery Switch (external);
 SWOUT = Output Switch (external);
 SWMB = Manual Bypass Switch (external and internal).
 SWBATT = Battery Switch (internal);
Power Cabinet MPX 130 PWC
