‐70‐
REMOTE COMMUNICATION
CONNECTIVITY PANEL OVERVIEW
The area of the Connectivity Panel includes the user interface and all the available connection services.
It includes a 7-inch graphic display (Monitor Control Unit) and two communication slots for the local or remote monitoring of the
system using optional cards.
The MCU or CP is provided by standard with an Ethernet 10/100 network port (RJ45 connector) and with ports dedicated to
assistance services.
Two independent communication slots to fit several communication cards including Netman 204 and Multicom 302. The two slots
are fully independent; this means that two separate communications bus can be created.

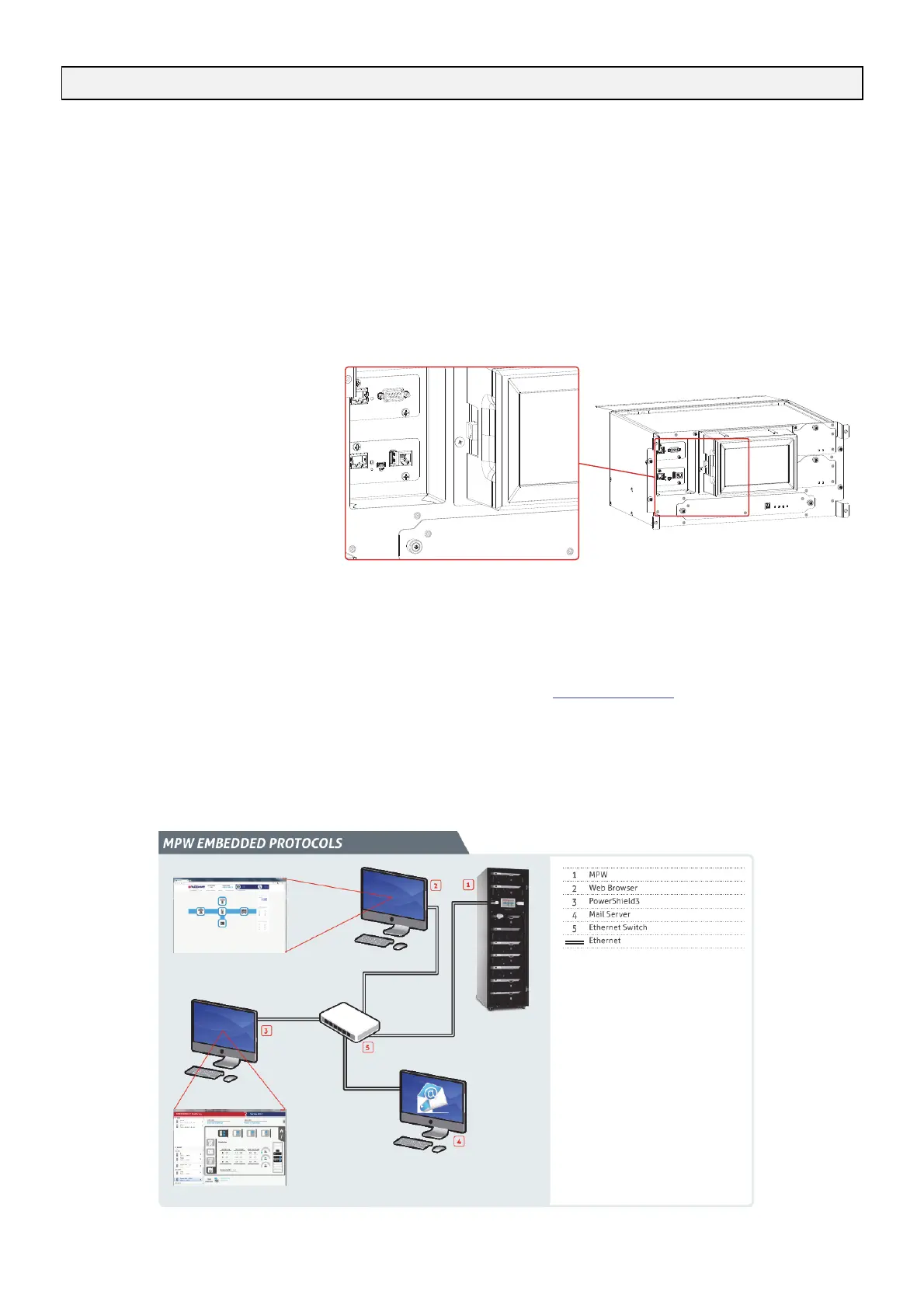

The figure shows the Ethernet
network port and the slots with the
Multicom 302 and Netman 204
options.
MPX
MONITORING WITH ETHERNET PORT (STANDARD)
The network port supports standard UDP, HTTP and SMTP protocols to control and monitor the system.
In detail:
UDP protocol to operate with PowerShield3 propriety software, (available from www.riello-ups.com).
For further information, refer to the dedicated PowerShield3 user manual. Note: The term “System” refers to the overall installation,
which might include from one to four complete cabinets. From the same Ethernet port, there are also two additional protocols
available:
HTTP to monitor the entire UPS system (status and measurements) via a standard web browser.
SMTP to send emails to a list of recipients with any alarms or reports content.
