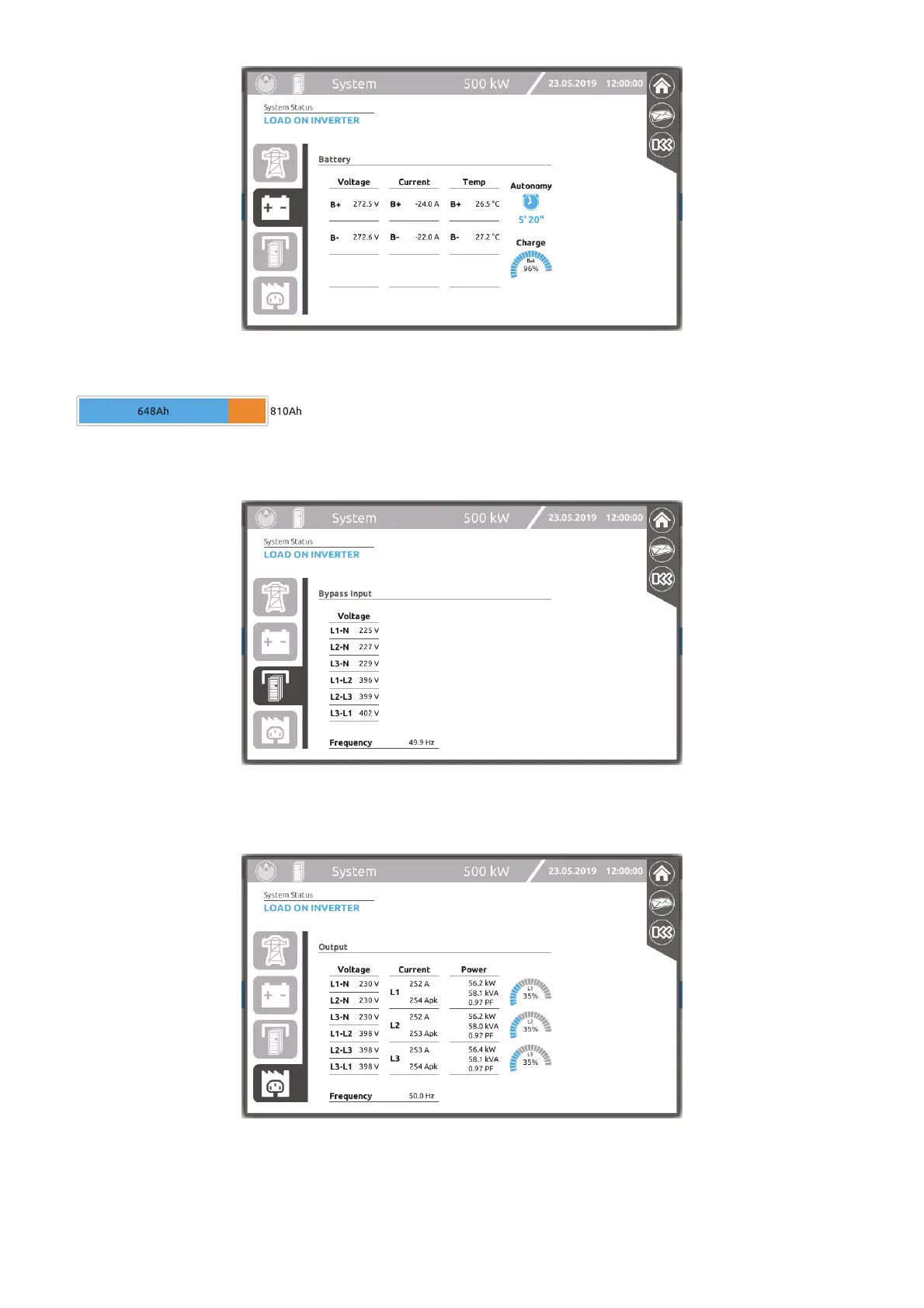

2 - This displays the status and the electrical parameters relating to the system batteries
If there is an anomaly related to the configured batteries (due to a BUA removal or
the opening of the battery disconnectors), a bar will be displayed that shows the
amount of residual Ah compared to the total configured Ah.
3 - This displays the status and the parameters relating to the system bypass line
4 - This displays the status and the electrical parameters relating to the system output
