Riello UPS MULTI POWER MPX - Monitoring with Netman 204 (Optional); Monitoring with Multicom 302 Card (Modbus 485)

‐73‐

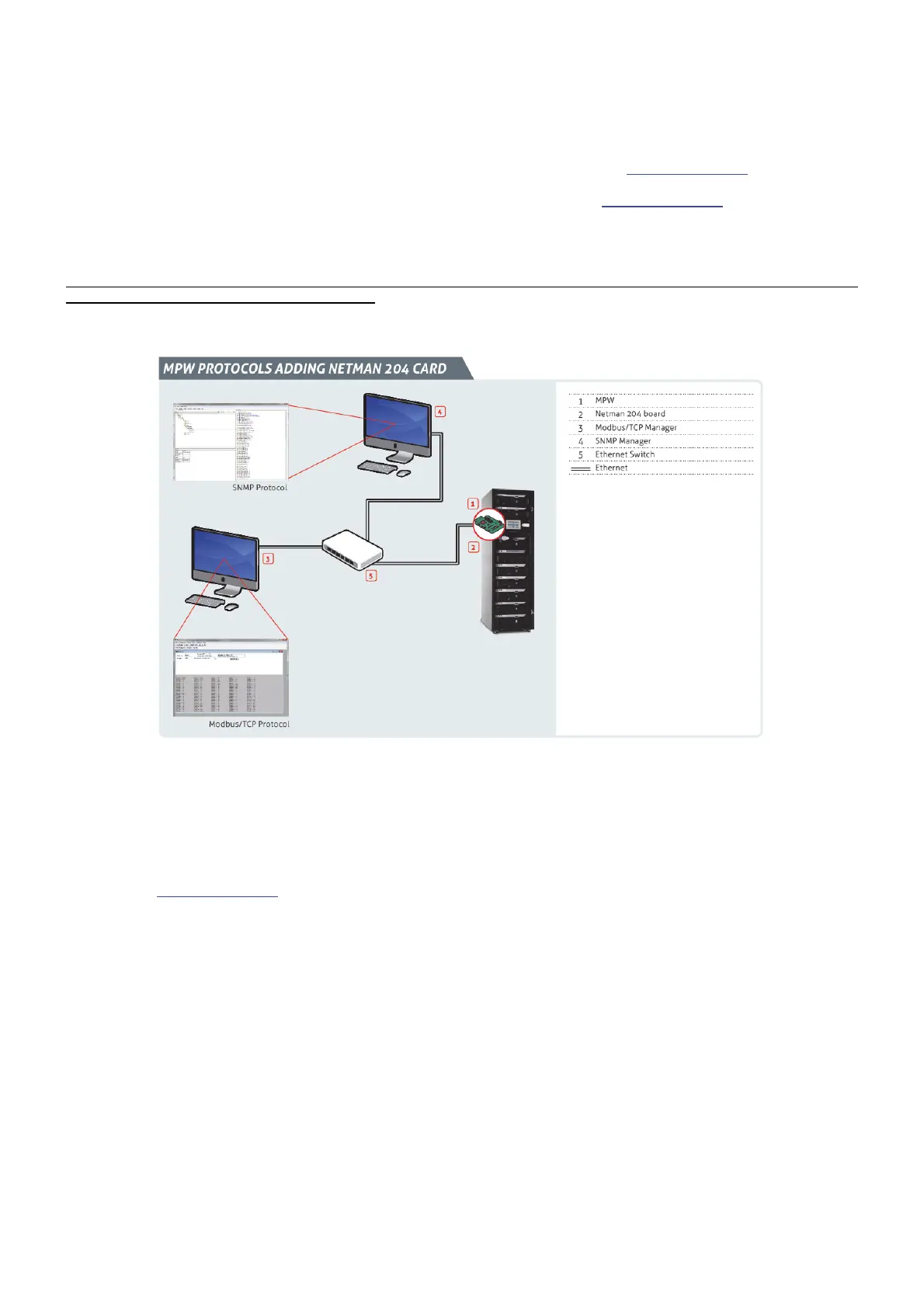

MPX MONITORING WITH NETMAN 204 (OPTIONAL)
The optional network card supports the standard SNMP and Modbus TCP protocols.
In detail:
- SNMP for control via SNMP Manager standard software (private MIB files available from www.riello-ups.com).
- Modbus/TCP to integrate the system into a Modbus network (log map available from www.riello-ups.com).
In the event of a system comprised of several cabinets, the Netman 204 provides alarm/status information and the main reading
for the entire system. It also provides a detailed description of the cabinet it is inserted into.
Note: A Netman 204 installed within an MPX system does not make available the services already supplied by the
standard Ethernet port (UDP, HTTP and SMTP).
MONITORING VIA OPTIONAL MULTICOM 302 CARD (MODBUS 485)
The optional network card supports the standard Modbus 485 protocol to integrate the system into a Modbus network (log map
available from www.riello-ups.com).
In the event of a system comprised of several cabinets, the MultiCOM 302 provides alarm/status information and the main reading
for the entire system. It also provides a detailed description of the cabinet it is inserted into.
