‐7‐

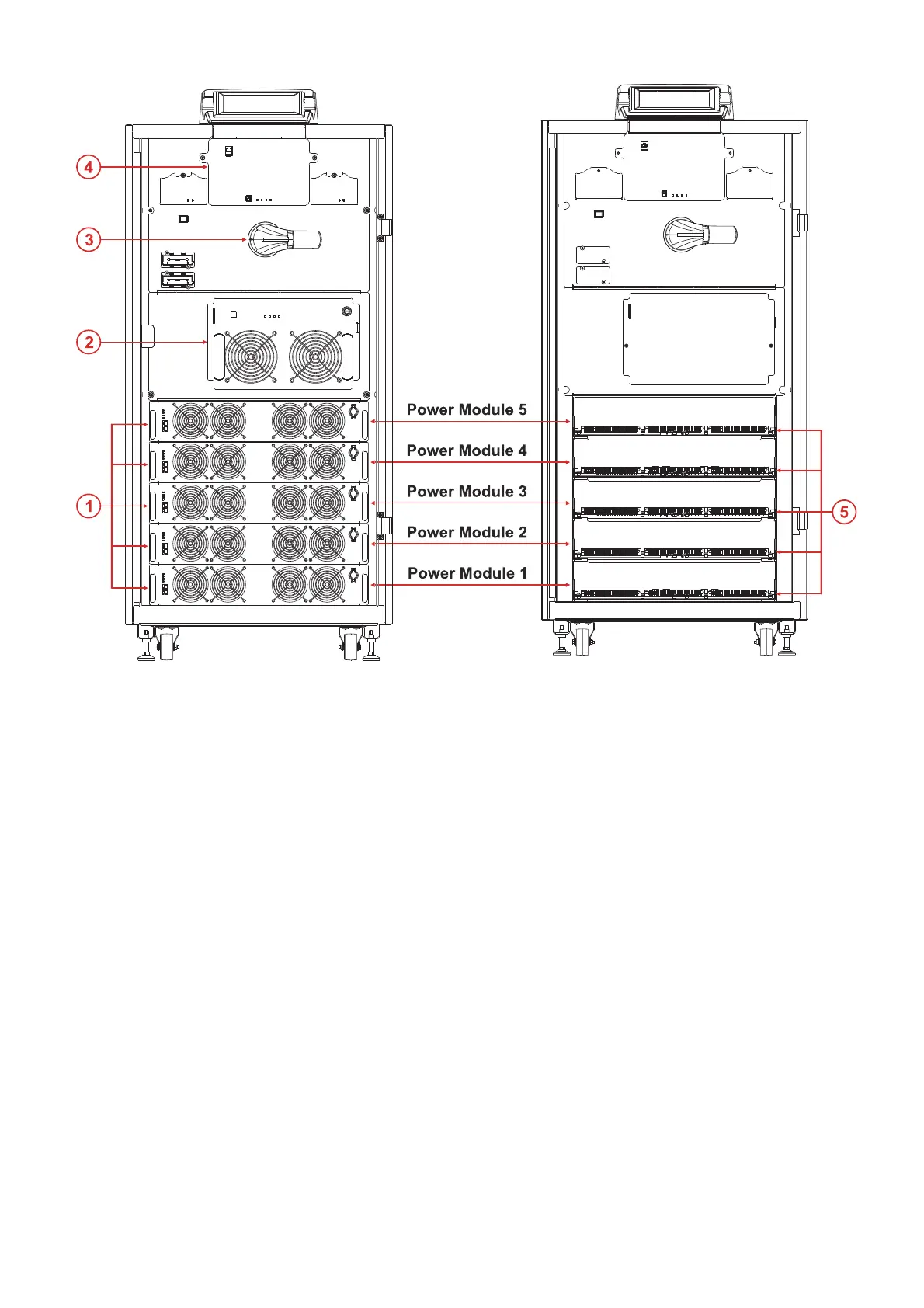

Front view – door open
Power Modules inserted
Front view – door open
Power Modules extracted and respective blanking
plates removed
①
Power Module 15/25kW (MPX 15 PM/MPX 25 PM)
④
Connectivity Panel (CP)
②
Bypass Module (BM)
⑤
Backplane: Power and communications interface
connections between the PM and the cabinet
③
Manual Bypass switch (SWMB)
