56 SteelFusion Edge Hardware and Maintenance Guide
Replacing SteelFusion Edge Components Adding and replacing memory modules

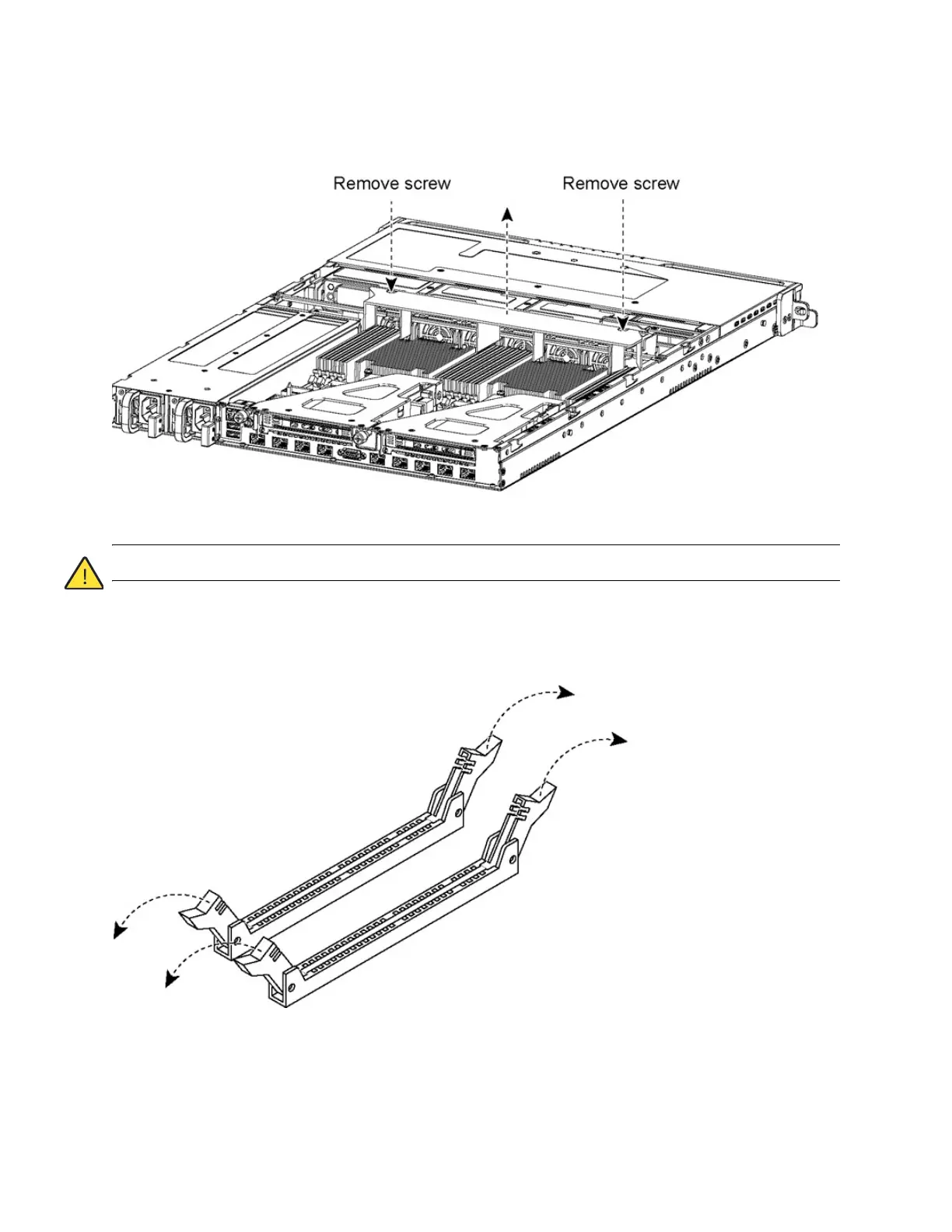

5. Remove the two screws securing the cooling shroud. Lift the cooling shroud straight up and out of
the appliance. (See Figure 4-16.)
Figure 4-16. Removing cooling shroud screws
Caution: Lift the shroud straight up to avoid damaging any components of the appliance.
6. Press the ejector tabs on the memory slots down and outward, and gently pull the memory module
out of the slot. (Figure 4-17.)
Figure 4-17. Accessing the memory modules
7. Remove the existing memory module and replace it with an approved memory module of the same
size.
