ORBIT 16

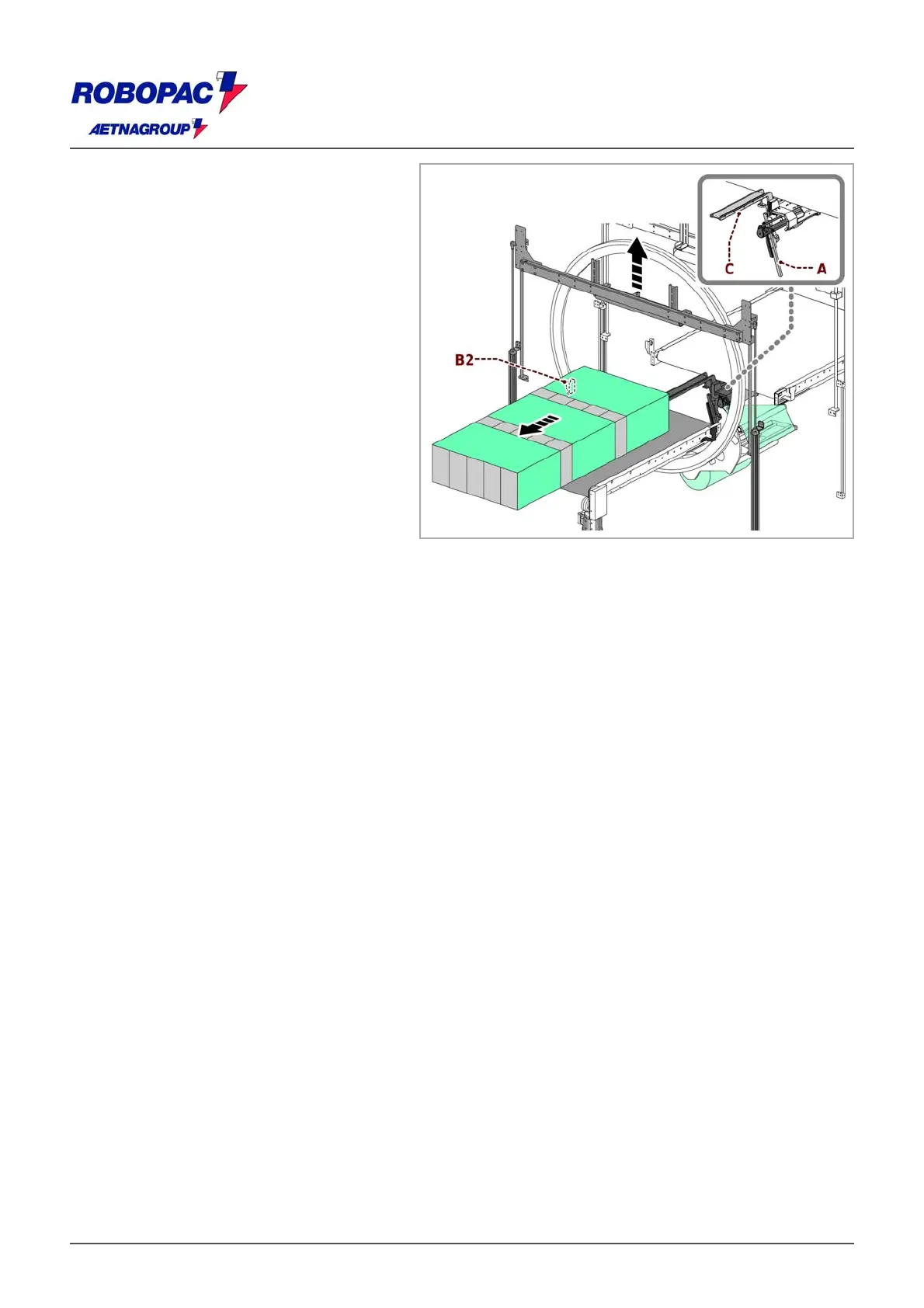

Phase 5
‒ After the “Head and tail turns” count has
finished, the rotating ring stops and the
pad (A) moves up, locking the film
against the stopper (C).
If there is a sealing unit installed, the
coating gets sealed as the pad moves
up.
The gripper returns to its position and
locks the coating.
‒ The blade comes out and cuts the
coating.
‒ The pad (A) lowers into rest position and
the blade is withdrawn at the same time.
‒ The outfeed conveyor restarts.
‒ The product detects the photocell (B2),,
timer begins counting the “conveyor
outfeed”.
‒ When timer has finished counting, the
conveyor stops and the products totally
wrapped can be removed from the
machine.
