Robopac SPIROR HP - Information and Safety Signals

SPIROR HP - DR
2.8. INFORMATION AND SAFETY SIGNALS
T

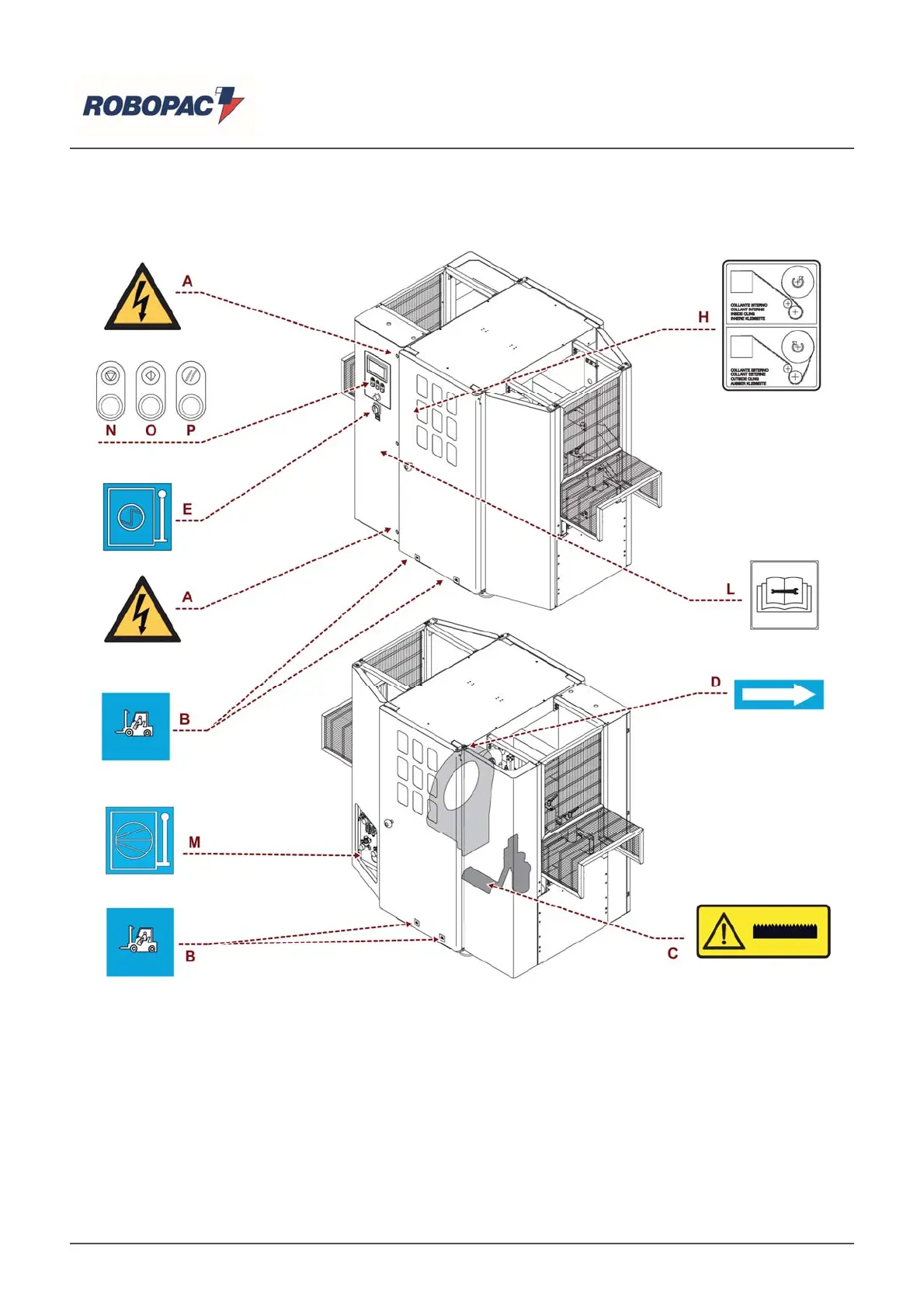

he figure indicates the position of the safety and information signs affixed to the machine.
For each sign is specified the relative description.
A
) Electrical hazard warning sign: do not enter area to avoid hazards of electrical shocks or electrocution.
B) Information signal: indicates the lifting points with a fork device.
C) Danger sign: indicates a cutting hazard.
D) Information sign: indicates the direction of rotation of the ring.
E) Information sign: it indentified the power cut-off switch.
H) Information signal: indicates the film layout.
L) Mandatory sign: it indicates the obligation to read the entire documentation before using the machine.
M) Information signal: identifies the pneumatic disconnecting switch.
N) Information signal: machine Stop symbol.
O) Information sign: machine Start symbol.
P) Information signal: machine Reset symbol.
English
13/95
