SPIROR HP - DR

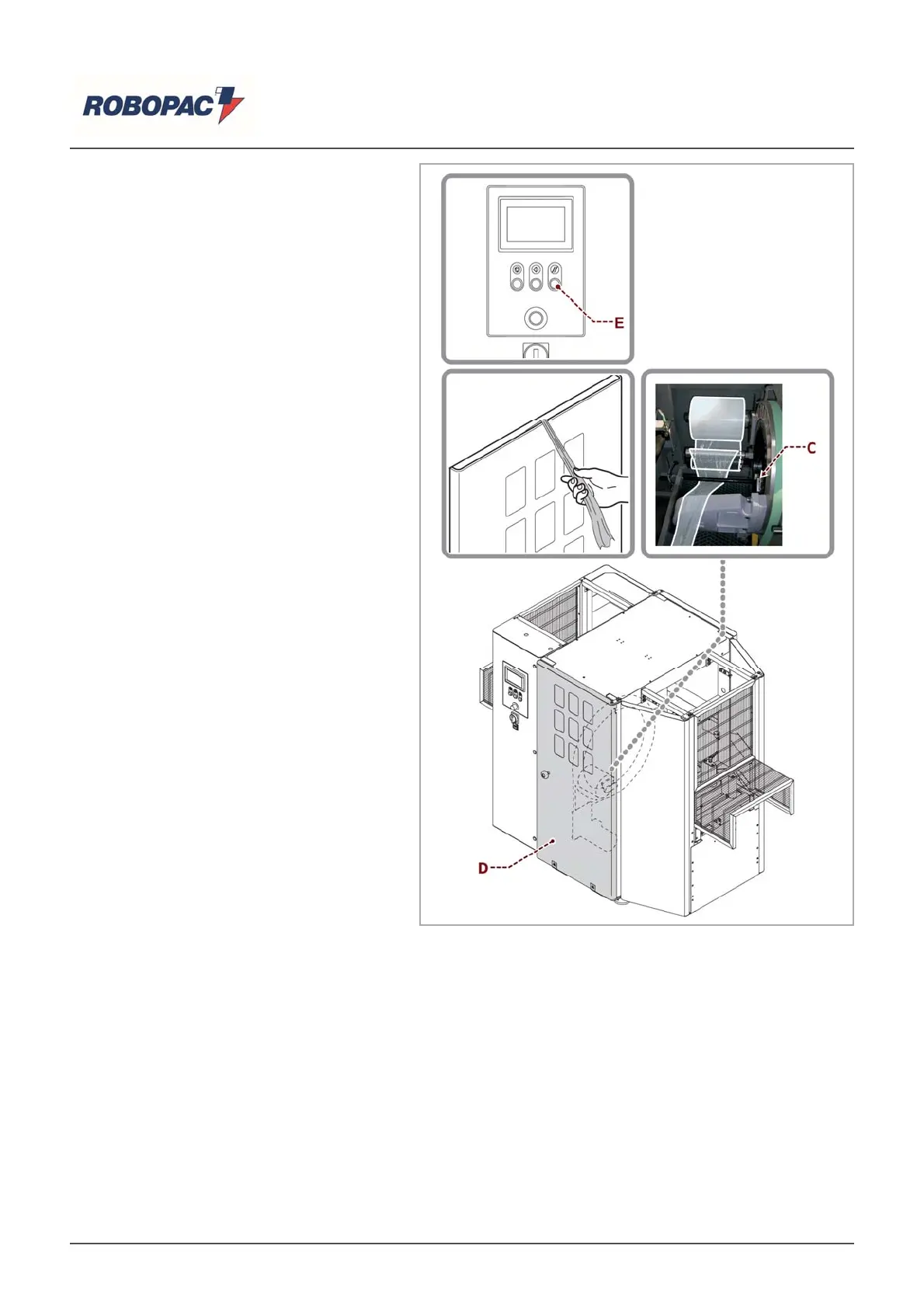

4. Open protection (B).
5. Manually unroll a metre of film and let it
pass under and resting on the (C)
gripper bar.
6. Close protection (B) holding the film
tight with your right hand.
7. With your left hand push the Reset
button (E).
6.10. CYCLE START
Proceed as indicated.
1. Choose a recipe from the control panel (see “Operating terminal description” - “Use of the terminal“).
Based on the chosen recipe:
‒ Make sure that the film is blocked inside the clamp.
‒ Make sure that the machine is in phase.
2. Place the product to be wrapped on the infeed conveyor.
3. Press the “Start” button on the control panel to begin the work cycle.
The machine will carry out the band wrapping automatically.
4. After the product has been transported onto the outfeed conveyer, pick it up.
