SPIROR HP - DR
3.2.3."COMPLETE" WRAPPING AND
"CENTRAL BANDS"
With the product on the feed conveyor,
press the “Start” button on the control
panel to start the work cycle.

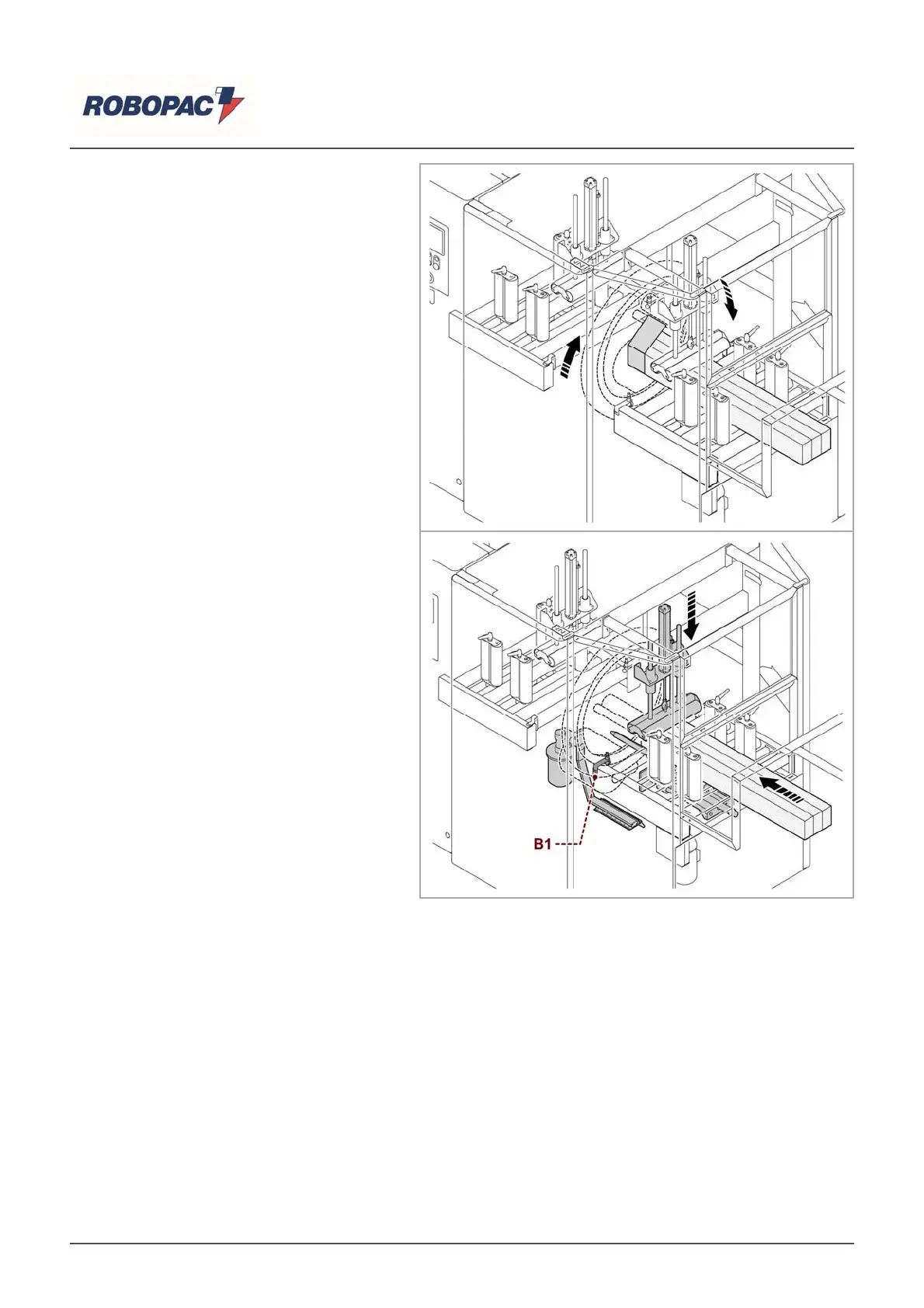

Phase 1
‒ The conveyor starts and moves the
product towards the rotating ring.
‒ The product engages photocell (B1), the
infeed pressure platen lowers and blocks
the product, the “head positioning” timer
starts.
‒ After the timer count has finished, the
conveyor stops; the rotating ring starts
counting the "reinforcing revolutions".
the head of the product is wrapped.
