SPIROR HP - DR

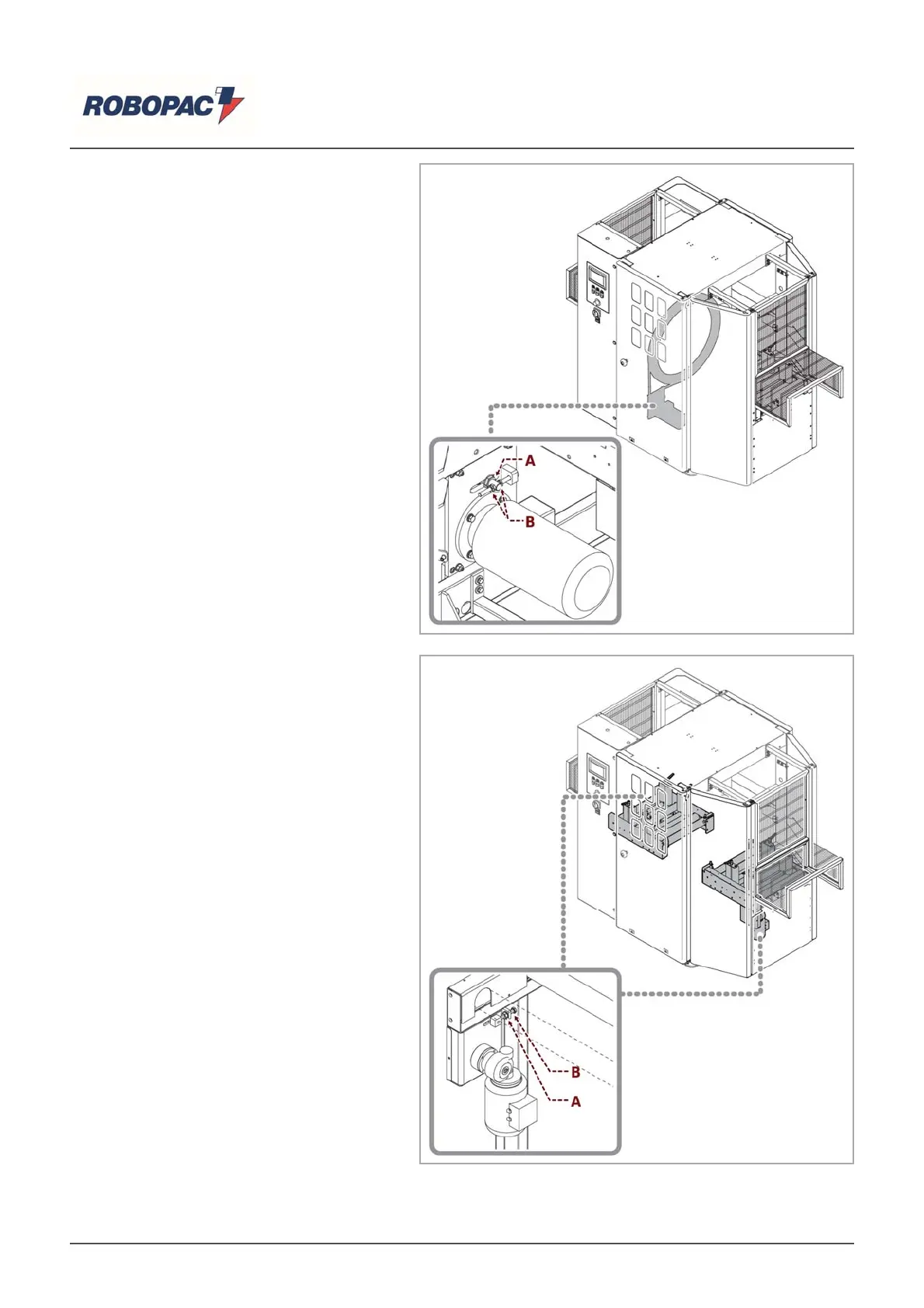

7.7. ROTATING RING BELT -
ADJUSTMENT
1. Loosen nut (A).
2. Adjust the tension of the belt by
operating on the (B) nuts.
3. Once adjustment has been performed,
tighten nut (A).
7.8. PRODUCT INFEED UNIT
CHAIN - ADJUSTMENT
1. Loosen nut (A).
2. Operate on the (B) tightening nuts until
reaching the correct tension of the chain.
3. Tighten the nut (A).
