SPIROR HP - DR

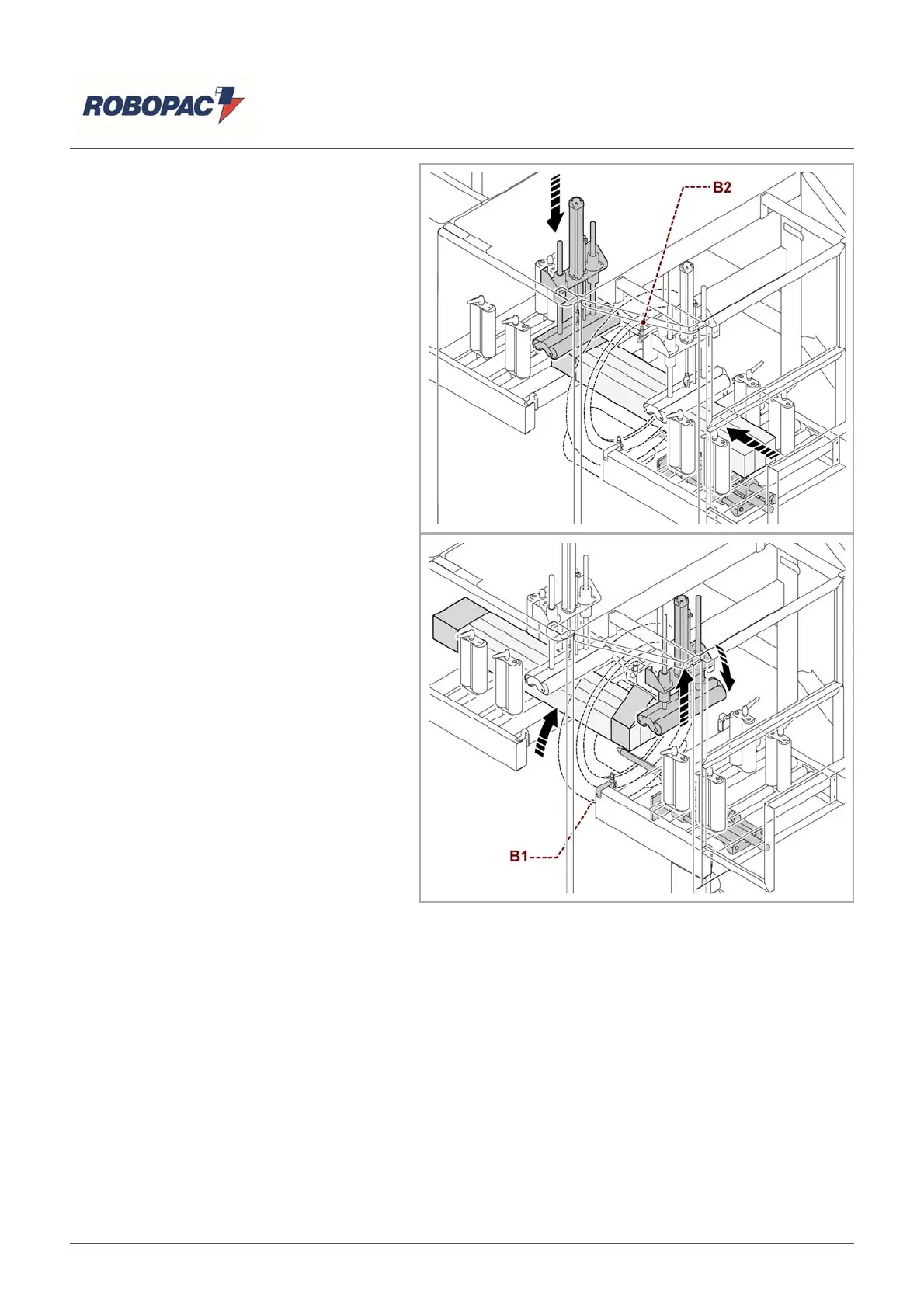

Phase 2
‒ Infeed/outfeed conveyors starts.
‒ The product moves forward and engages
photocell (B2).
‒ The outfeed pressure platen lowers on
the product.
Phase 3
‒ The product moves forward disengaging
photocell (B1), the infeed pressure
platen lifts and the ring starts rotation.
‒ After one revolution, conveyors turn on
and the “tail positioning” timer begins
counting.
‒ After the timer count has finished, the
outfeed carrier stops, the “head and tail
turns” counter starts; the tail of the
product is wrapped and gripper comes
out at the last turn of the rotating ring to
grasp the coating.
