SPIROR HP - DR

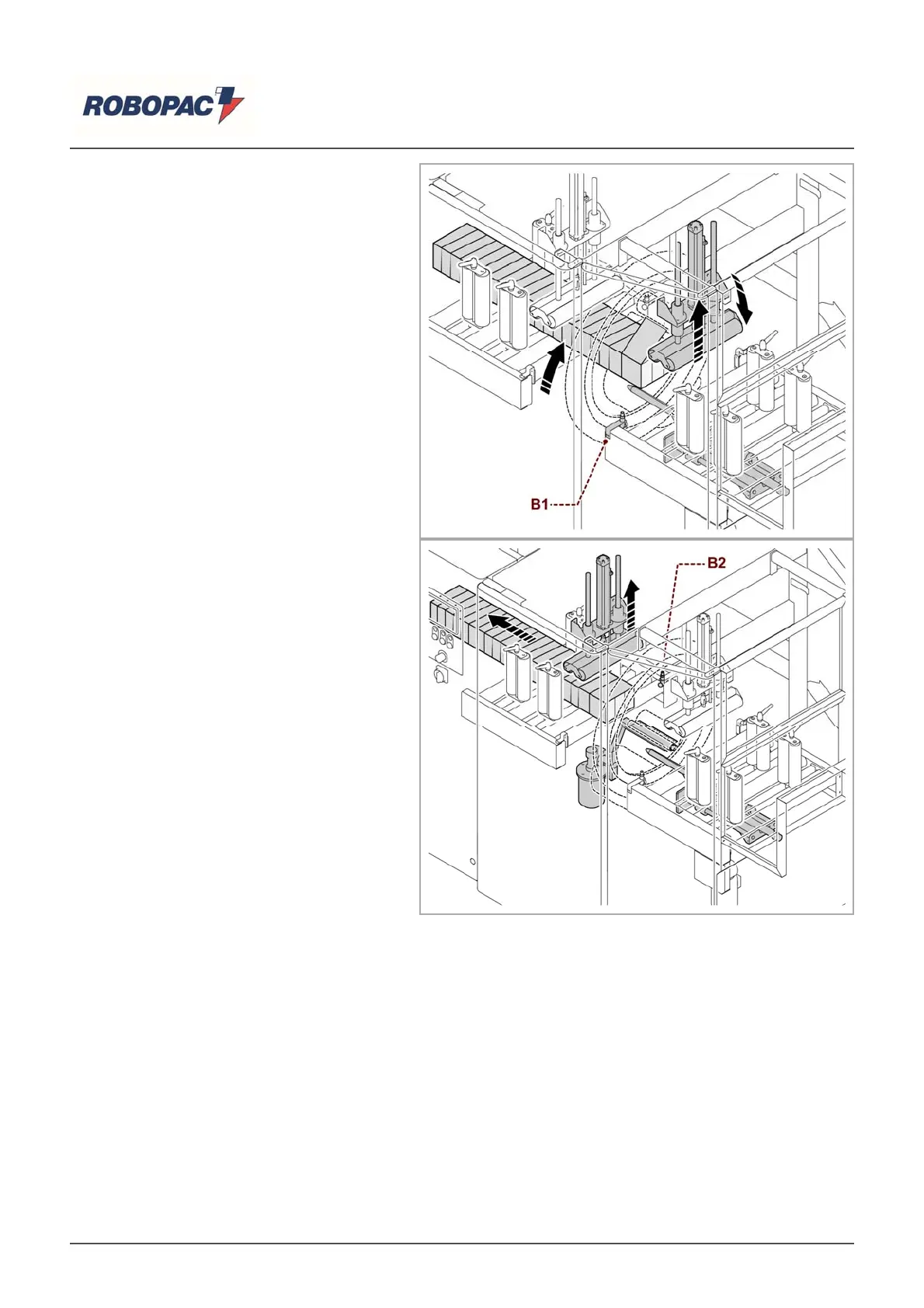

Phase 4
‒ The product moves forward disengaging
photocell (B1), the infeed pressure
platen lifts, the “tail positioning” timer
starts.
‒ After timer count has been completed,
the outlet conveyor stops and the
"reinforcing revolutions" count is started.
The product is wrapped at the tips while
at the last turn of the rotating ring, the
gripper comes forward to hook the film.
Phase 5
‒ After the counting of the “reinforcement
round” the rotating ring stops while the
gripper blocks the film and the arm with
the blade makes the cut.
‒ The outfeed conveyor restarts.
‒ The product detects the photocell (B2),
the outfeed pressure unit lifts up and the
“conveyor outfeed” timer starts.
‒ When timer has finished counting, the
conveyor stops and the products totally
wrapped can be removed from the
machine.
