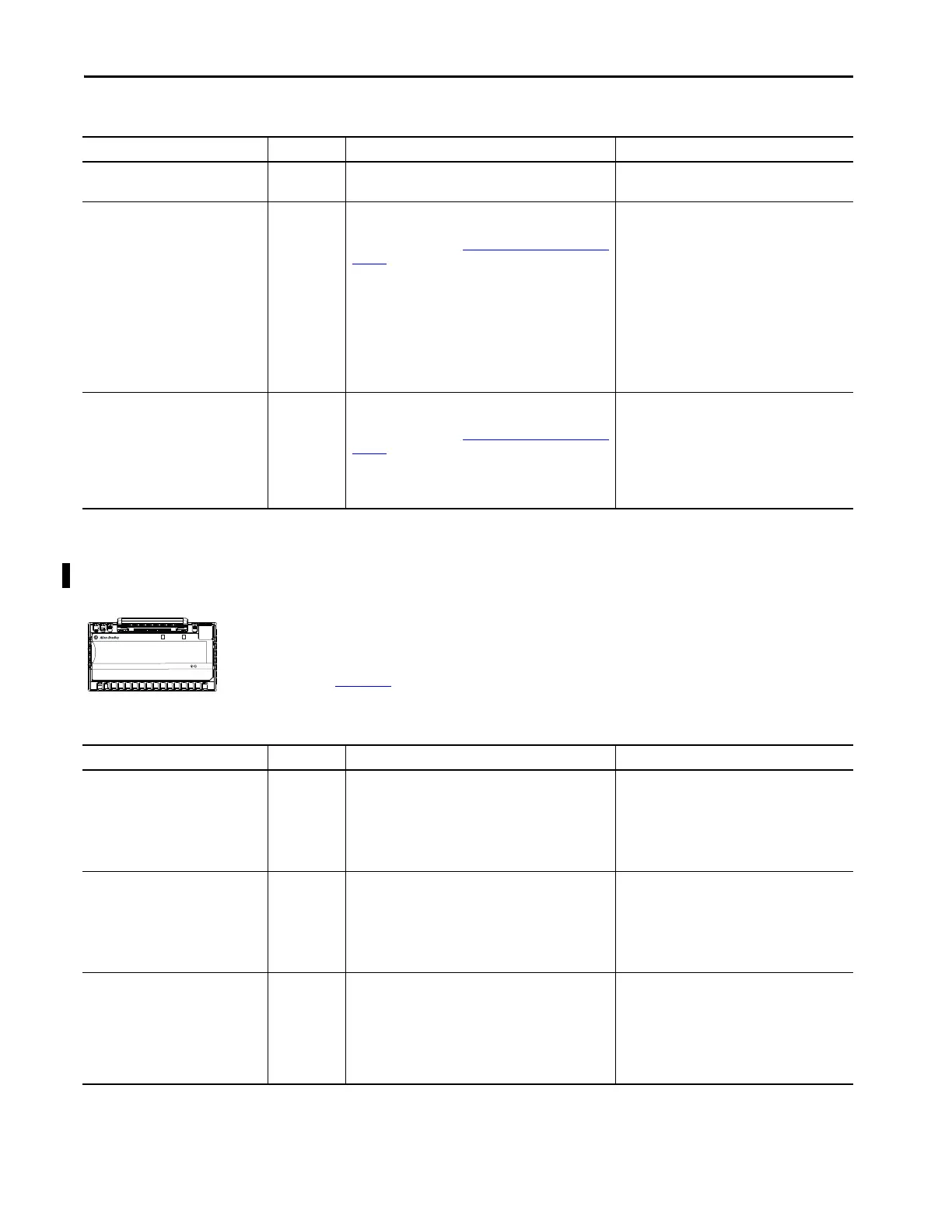

146 Rockwell Automation Publication 5094-UM001E-EN-P - April 2020
Appendix B Module Tag Definitions
5094-IM8 Module Tags
This section describes the tags that are associated with the 5094-IM8 module.
Configuration Tags
Tab le 34 describes the 5094-IM8 module configuration tags.
Ptxx.Data BOOL Indicates the current digital input value. • 0 = Off
•1 = On
Ptxx.Fault BOOL Indicates that point data is inaccurate and cannot be trusted
for use in the application.
For more information, see Module Data Quality Reporting
on
page 47.
• 0 = Good
• 1 = Bad, causing fault
The typical causes of uncertain data are the
following:
– Field Power Loss condition
– No Load condition
– Short Circuit condition
If the tag is set to 1, you must troubleshoot the
module to correct the cause of the inaccuracy.
IMPORTANT: Once the condition that causes the
tag to change to 1 is removed, the tag
automatically resets to 0.
Ptxx.Uncertain BOOL Indicates that the point data can be inaccurate but the
degree of inaccuracy is not known.
For more information, see Module Data Quality Reporting
on
page 47.
• 0 = Good data
• 1 = Uncertain data
If the tag is set to 1, you must troubleshoot the
module to correct the cause of the inaccuracy.
IMPORTANT: Once the condition that causes the
tag to change to 1 is removed, the tag
automatically resets to 0.
Table 33 - 5094-IA16 Module Input Tags
Name Data Type Definition Valid Values
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Table 34 - 5094-IM8 Module Configuration Tags
Name Data Type Definition Valid Values
Ptxx.InputOffOnFilter SINT The amount of time that a signal must be in the on state
before the input data indicates the on state.
The amount of time is indicated using an enumeration. Not
all products support all enumeration values.
Ptxx depends on the number of counters that have been
configured.
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
Ptxx.InputOnOffFilter SINT The amount of time that a signal must be in the off state
before the input data indicates the off state.
The amount of time is indicated using an enumeration. Not
all products support all enumeration values.
Ptxx depends on the number of counters that have been
configured.
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
Pt0x.FieldPowerDiagEn BOOL Determines whether the point faults when no field power is
present.
• If the input is powered from the SA, select this checkbox
to monitor the status of the SA power.
• If the input is powered from another power supply, do
not select this checkbox, so that the input continues to
work even when there is no SA power
• 0 = Field Power/SA Power Diagnostics is not sent
to the controller.
• 1 = Field Power/SA Power Diagnostics is sent to
the controller. Use this if the sensor uses the SA
power in the terminal base.
To Next Page
