Chapter 6 Configure the Standard Module
Before You Begin
You must complete the following tasks before you can configure the module:
1. Create a Logix Designer application project.
2. Add a FLEX 5000 EtherNet/IP adapter to the project.
For more information on how to add a FLEX 5000 EtherNet/IP adapter
to a Logix Designer application project, see the EtherNet/IP
Communication Modules in 5000 Series Systems User Manual,
publication ENET-UM004
.
Create a New Module
After you create a Logix Designer application project and add a FLEX 5000
EtherNet/IP adapter to the project, you can use the following methods to add
modules to the project.
• Discover Modules
• New Module
Discover Modules
To use the Discover Modules method with FLEX 5000 I/O modules, complete
these steps.
1. Go online with your Logix Designer application.
The project must include a FLEX 5000 EtherNet/IP adapter.

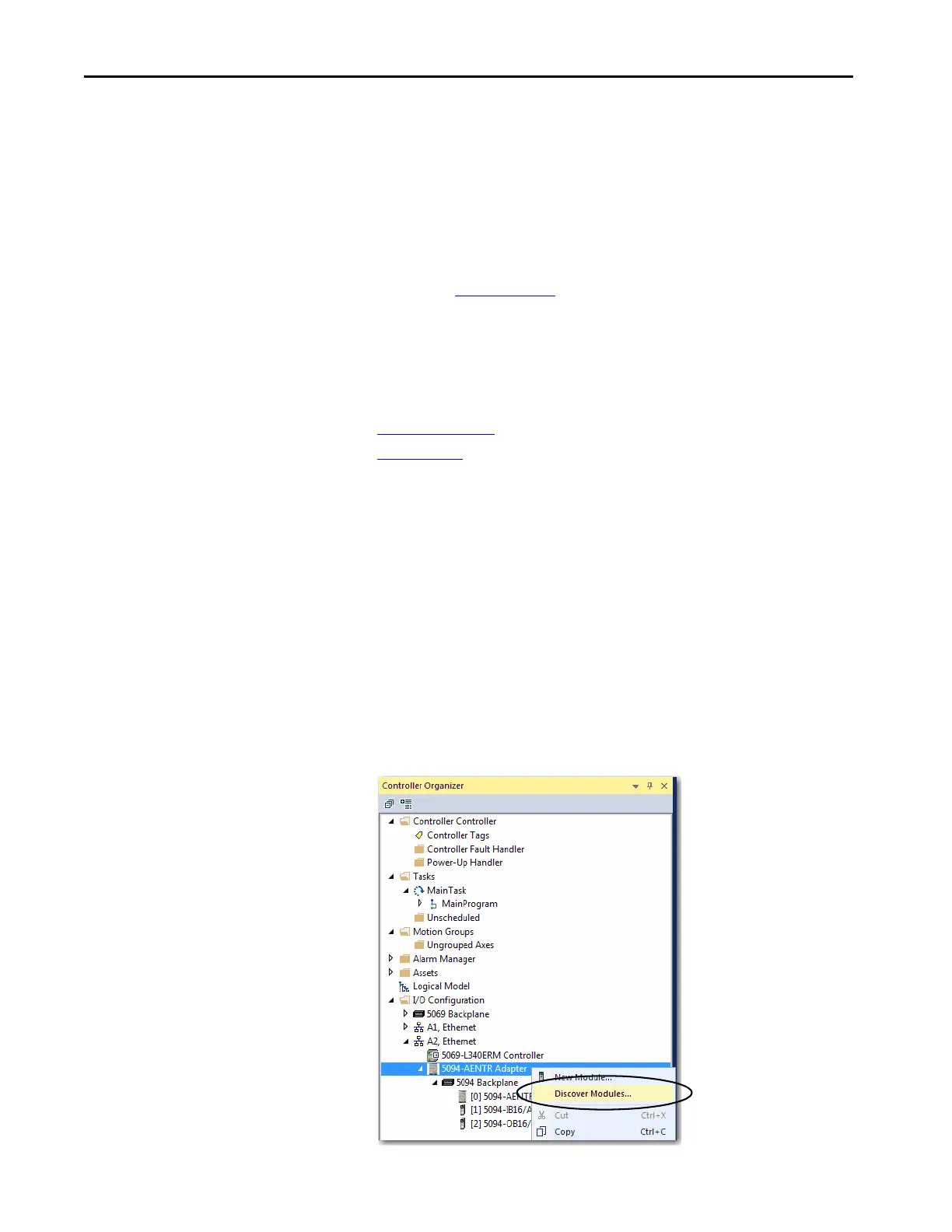

2. Right-click the FLEX 5000 EtherNet/IP adapter and choose Discover
Modules.
The Logix Designer application automatically detects available modules
that are connected to the backplane.
