4. Click OK to close the Module Properties dialog box.
5. Add an MAOC instruction to your logic.

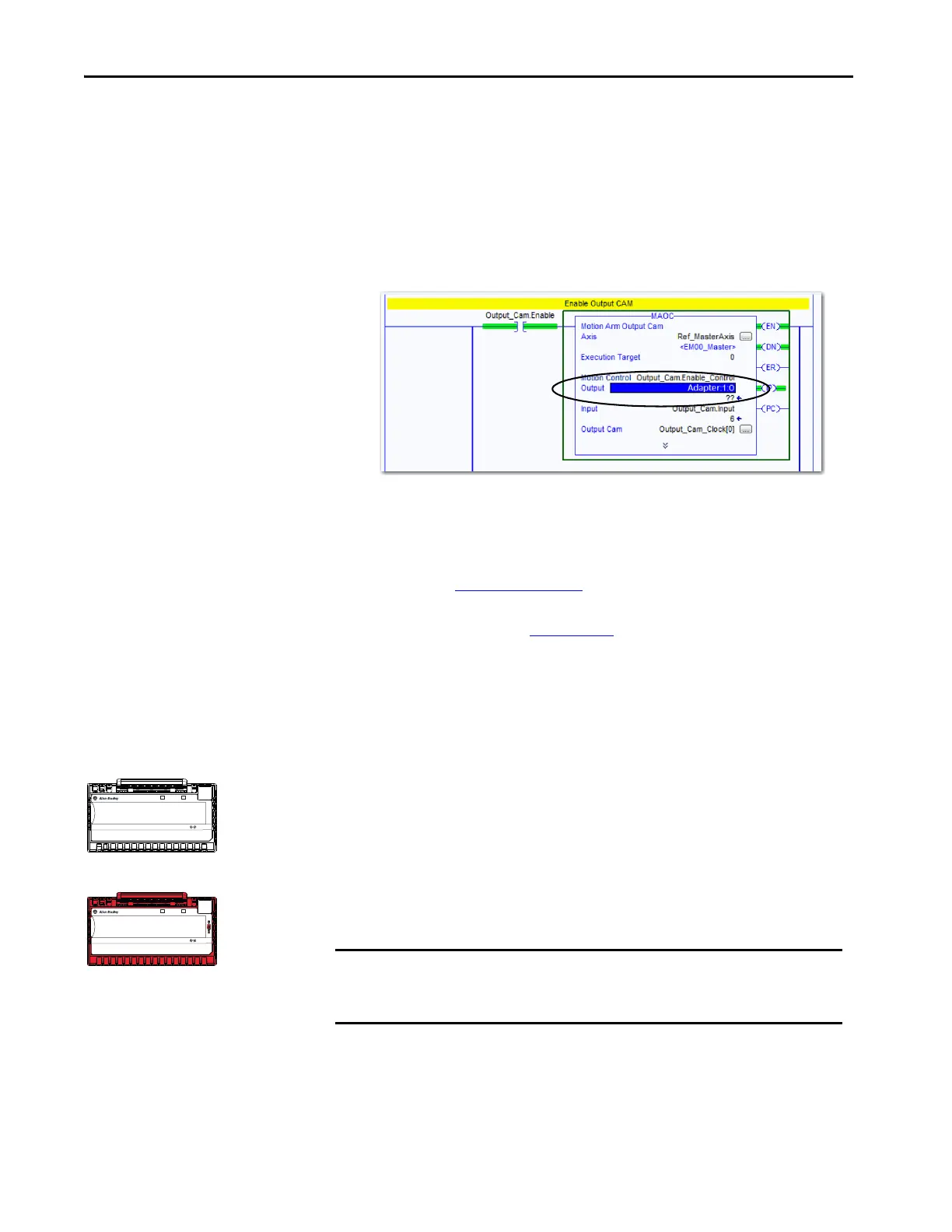

6. In the MAOC instruction, use the module output tag in the Output
operand, for example Adapter:1:O for the output module and
shown below.
The tag value displays as ??. This value is correct.
For more information on how to use an MAOC instruction in general, see
the following:
• Logix 5000 Controllers Motion Instructions Reference Manual,
publication MOTION-RM002
• Position-based Output Control with the MAOC Instruction Application
Te c h n iqu e , p u b l icati o n 1756-AT017
Feature Specific to Only
Relay Output Modules
The following feature is specific to only the relay output modules.
Isolated Output
These digital output modules provide point-to-point wiring isolation:
• 5094-OW4IS
• 5094-OW4ISXT
• 5094-OW8I
• 5094-OW8IXT
STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Safety Modules
Standard Modules
IMPORTANT Although some FLEX 5000 digital I/O modules do not provide wiring
isolation, all FLEX 5000 modules maintain internal electrical isolation
between the system-side and field-side power buses.
