Appendix A Troubleshoot Your Module
Use the Logix Designer
Application for
Troubleshooting
In addition to the status indicator display on the module, the Logix Designer
application indicates the presence of fault conditions.
Fault conditions are reported in the following ways:
• Warning Signal in the I/O Configuration Tree
• Status and Fault Information in Module Properties Categories
• Logix Designer Application Tag Editor
Warning Signal in the I/O Configuration Tree

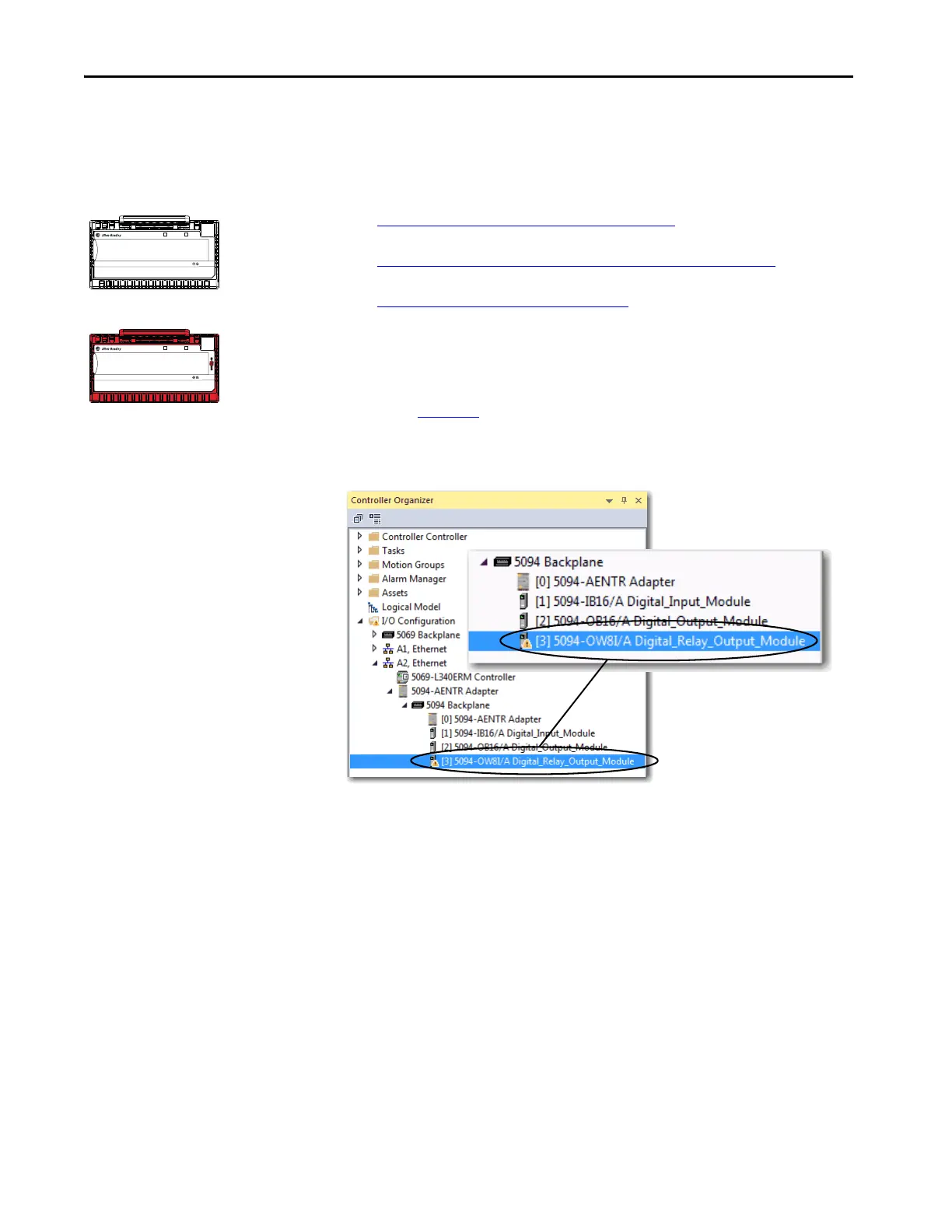

As shown in Figure 24, a warning icon appears in the I/O Configuration tree
when a fault occurs.
Figure 24 - Warning Icon in Controller Organizer
