Rockwell Automation Publication 5094-UM001E-EN-P - April 2020 135
Troubleshoot Your Module Appendix A
FLEX 5000 Safety Relay
Output Modules
Status Indicators

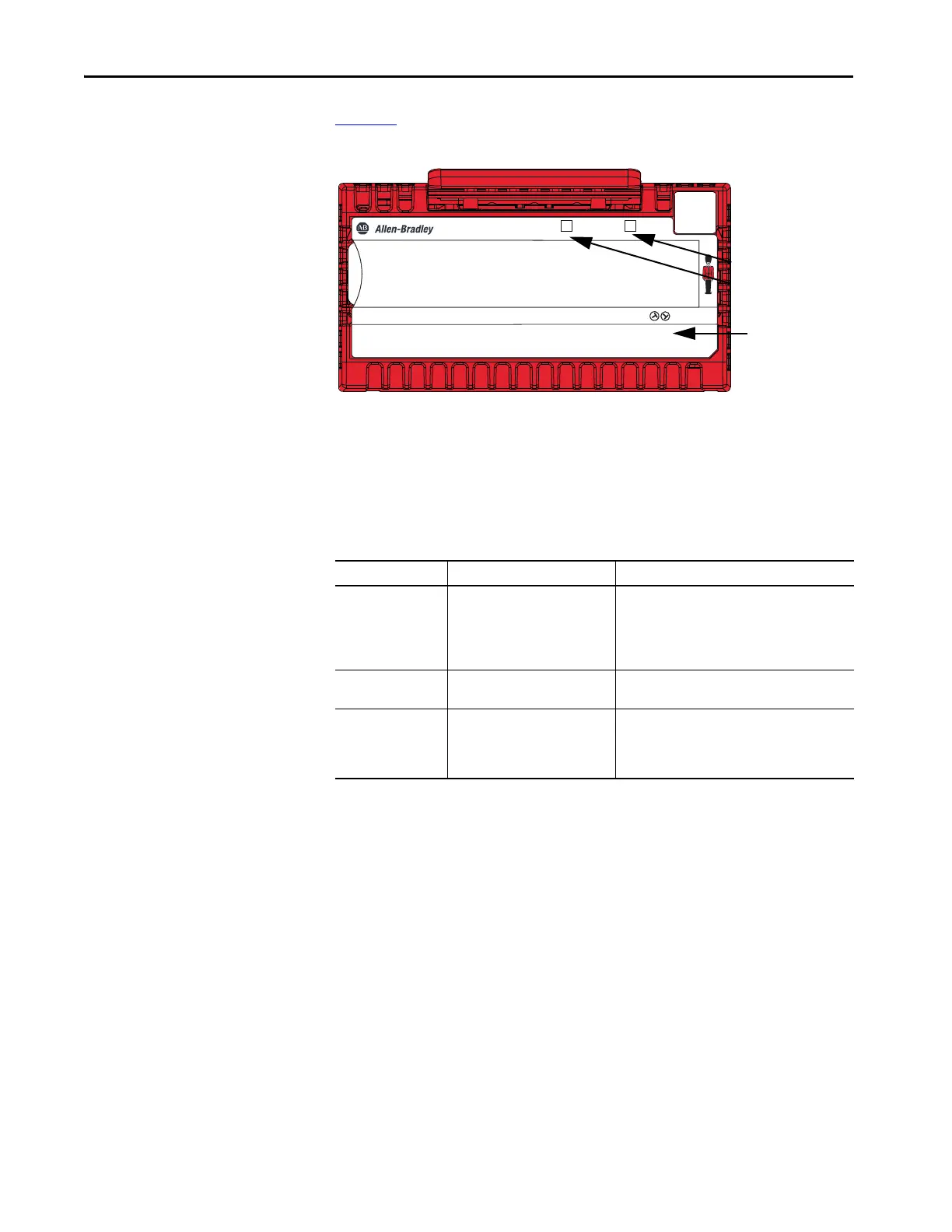

Figure 23 shows the status indicators on FLEX 5000 safety relay output modules.
Figure 23 - FLEX 5000 Safety Relay Output Modules
Table 31 - I/O Status Indicators - FLEX 5000 Safety Relay Output Modules
Indicator State Description Recommended Action
Off One of the following:
• The output point is Off.
• There is no backplane power.
One of the following:
• Confirm that the output point is configured
properly.
• Confirm that there is backplane power supplied
through the FLEX 5000 EtherNet/IP adapter.
Steady yellow The output point is operating
normally.
None
Steady red One of the following:
• A Field Power Loss condition
exists.
• Internal channel fault.
One of the following:
• Locate and correct the cause of Field Power Loss
condition.
• Locate and correct internal fault.
STATUS
POWER
SAFETY RELAY 4 OUTPUT ISOLATED
5094-OW4IS
2
3
TB3W
FLEX 5000
TM
I/O
0 1 2 3
Module status indicator
SA power status indicator
I/O status indicators
Output Point 0 (O00)
Output Point 1 (O01)
Output Point 2 (O02)
Output Point 3 (O03)
