Chapter 2 Common Digital I/O Module Features
Output Module Capability
FLEX 5000 digital output modules can be used to drive various output devices.
Typical output devices compatible with FLEX 5000 digital output modules
include these items:
• Motor starters
• Solenoids
•Indicators
Follow these guidelines when designing a system:
• Make sure that the FLEX 5000 digital output modules can supply the
necessary surge and continuous current for proper operation.
• Make sure that the surge and continuous current are not exceeded.
Damage to the module could result.
When you size output loads, refer to the documentation supplied with the output
device for the surge and continuous current necessary to operate the device.
Producer/Consumer
Communication
FLEX 5000 digital I/O modules use the Producer/Consumer communication
model to produce data without a controller polling them first. The modules
produce the data and controllers consume it. That is, the owner-controller and
controllers with a Listen Only connection to the module can consume it.
When an input module produces data, the controllers can consume the data
simultaneously. Simultaneous data consumption mitigates the need for one
controller to send the data to other controllers.

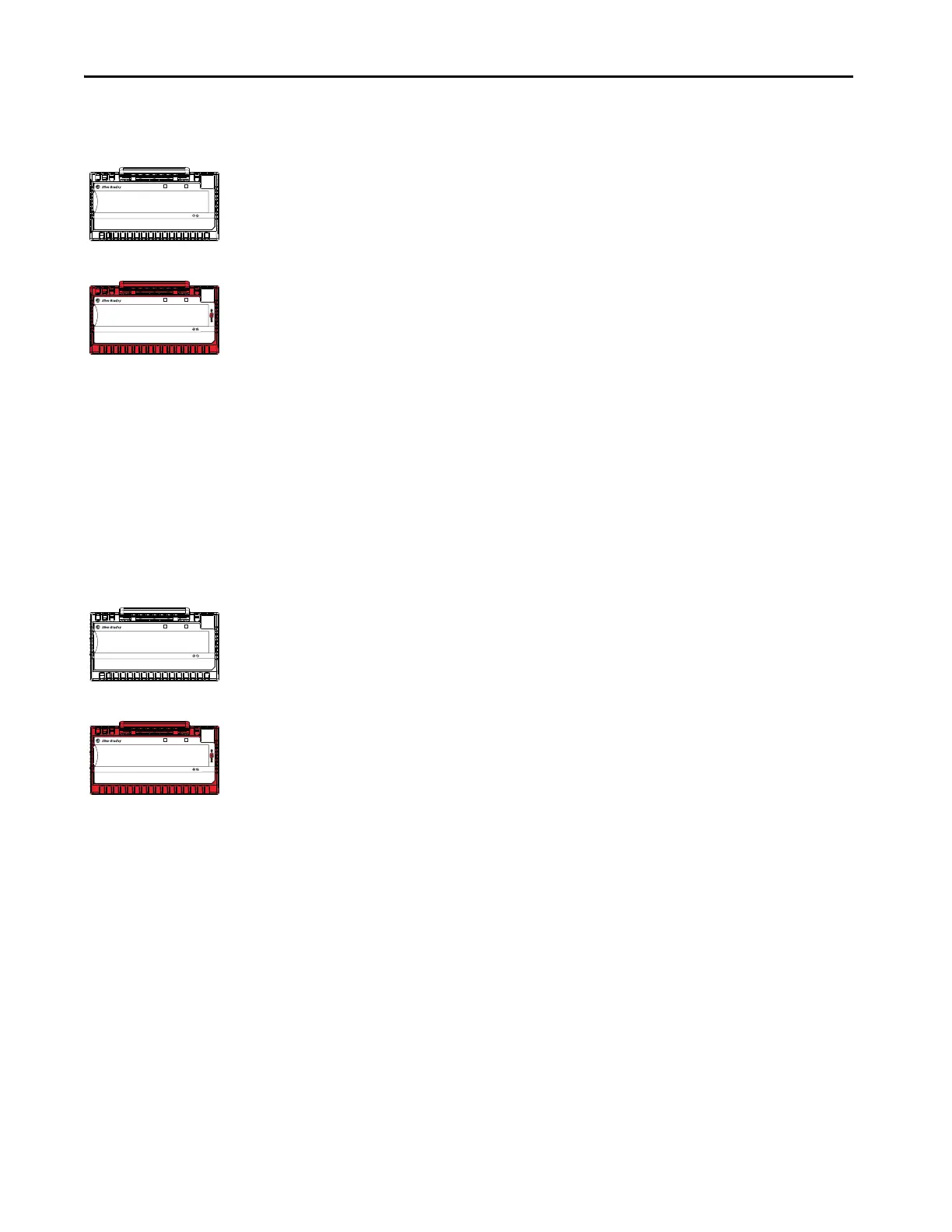

STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Safety Modules
Standard Modules
STATUS
POWER
SAFETY DIGITAL 16 INPUT 24 VDC
5094-IB16S
5
5
TB3I
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Safety Modules
Standard Modules
