Edit 5094-OB8/5094-OB16/
5094-OB32 Module
Configuration Categories
In addition to the General, Connection, and Module Info categories, the Points
category is available when you configure a 5094-OB8, 5094-OB8XT,
5094-OB16, 5094-OB16XT, 5094-OB32, or 5094-OB32XT module.
Points Category

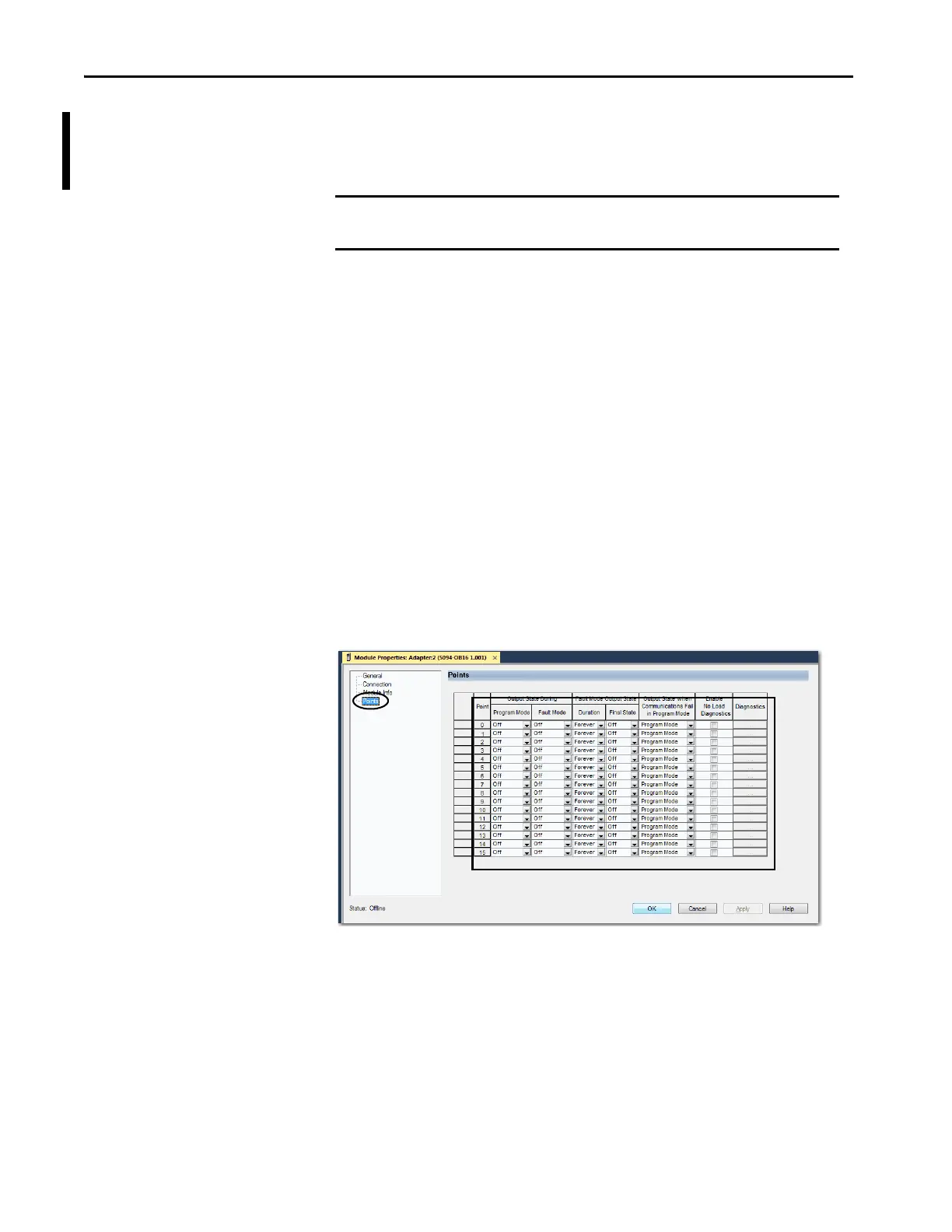

The Points category shows the configuration options available for each point.
You can configure the following parameters from the Points category:
• Output State During Program Mode
• Output State During Fault Mode
• Fault Mode Output State Duration
• Fault Mode Output State Final State
• Output State When Communications Fail in Program Mode
•Enable No Load Diagnostics
IMPORTANT If you use the Listen Only Data connection type, the Points Category does
not appear.
