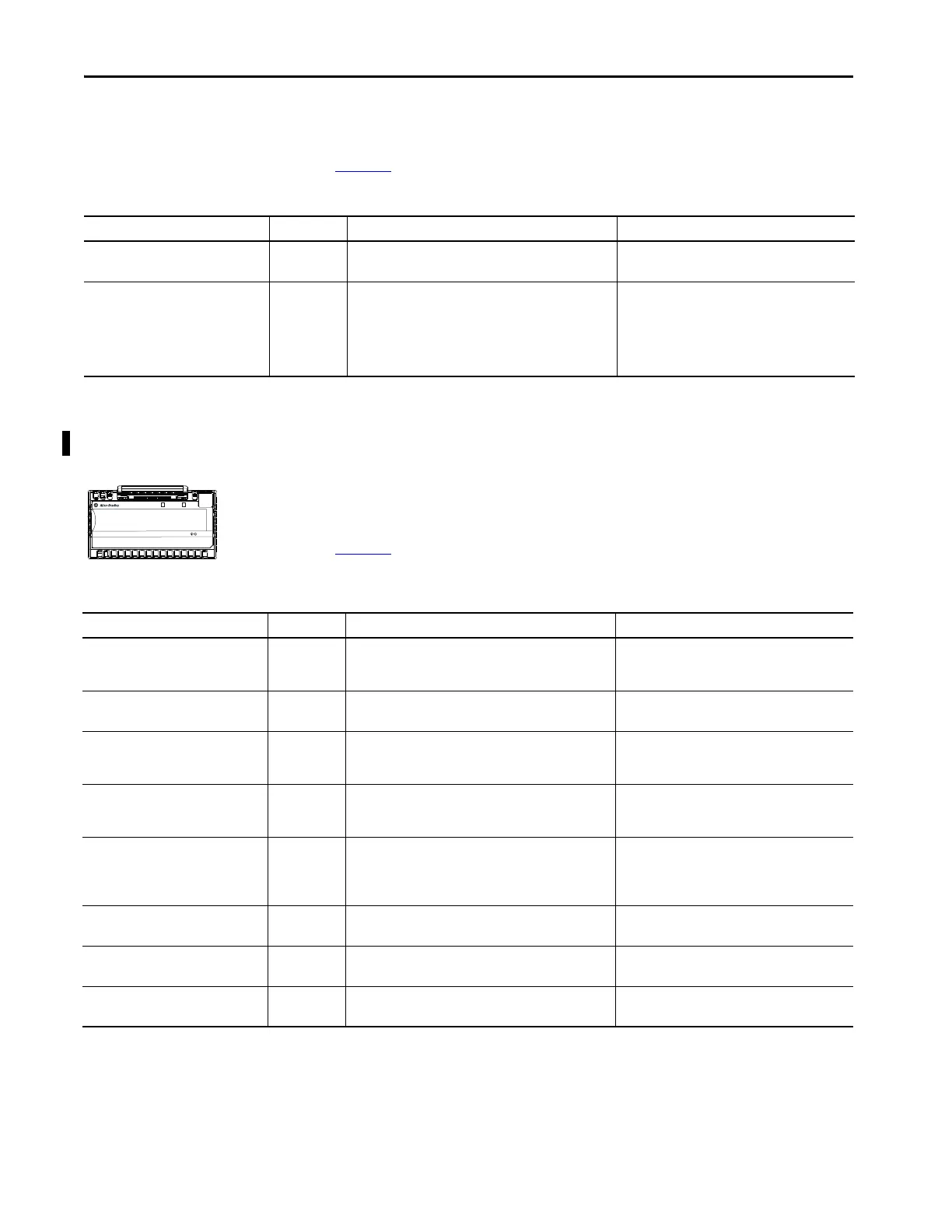

174 Rockwell Automation Publication 5094-UM001E-EN-P - April 2020
Appendix B Module Tag Definitions
Output Tags
Tab le 59 describes the 5094-OB16S module output tags.
5094-OB32 Module Tags
This section describes the tags that are associated with the 5094-OB32 module.
Configuration Tags
Tab le 60 describes the 5094-OB32 module configuration tags.
Table 59 - 5094-OB16S Module Safety Output Tags
Name Data Type Definition Valid Values
Ptxx.Data BOOL Indicates the current digital output value. • 0 = Off
•1 = On
Ptxx.ResetFault BOOL When ‘Latch Fault until reset via output tag’ mode is
Enabled, the
I/O channel will hold safety output fault indications until it
checks that the fault is removed. If the fault is removed, it
will clear only the fault status upon detecting that the
ResetFault bit in its channel sees a rising edge.
Rising edge: the fault status is released if the fault
has been removed.
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Table 60 - 5094-OB32 Module Configuration Tags
Name Data Type Definition Valid Values
Ptxx.FaultMode BOOL Selects the behavior the output point takes if a
communication fault occurs. FaultValue defines the value to
go to when set to user-defined value.
• 0 = Go to a user-defined value
• 1 = Hold last state
Ptxx.FaultValue BOOL Defines the value that the discrete output should assume if a
communication fault occurs when FaultMode = 0.
•0 = Off
•1 = On
Ptxx.ProgMode BOOL Selects the behavior the output point should take when
transitioned into Program mode. ProgValue defines the
value to go to when set to user-defined value.
• 0 = Go to a user-defined value
• 1 = Hold last state
Ptxx.ProgValue BOOL Defines the value that the output should take when the
connection transitions to Program mode if the ProgMode bit
is set to "User-Defined Value".
• 0 = The output state is Off during Program mode.
• 1 = The output state is On during Program mode.
Ptxx.FaultFinalState BOOL If FaultValueStateDuration is nonzero determines the final
Output state after the configured FaultValueStateDuration
time out occurs.
• 0 = The output state is Off after the
FaultValueStateDuration time expires.
• 1 = The output state is On after the
FaultValueStateDuration time expires.
Ptxx.ProgramToFaultEn BOOL Determines if an output should transition to the Fault Mode
if the connection faults while in Program Mode.
• 0 = Stay in Program Mode
• 1 = Go to Fault mode
Ptxx.NoLoadEn BOOL Enables no load detection for output points. • 0 = Disable
•1 = Enable
Ptxx.FaultValueStateDuration SINT This value determines the length of time the Fault Mode
state is held before the FaultFinalState being applied.
•0 = Hold forever (default).
• 1, 2, 5, or 10 seconds
